| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Ratings | |
| Voltage Rating |

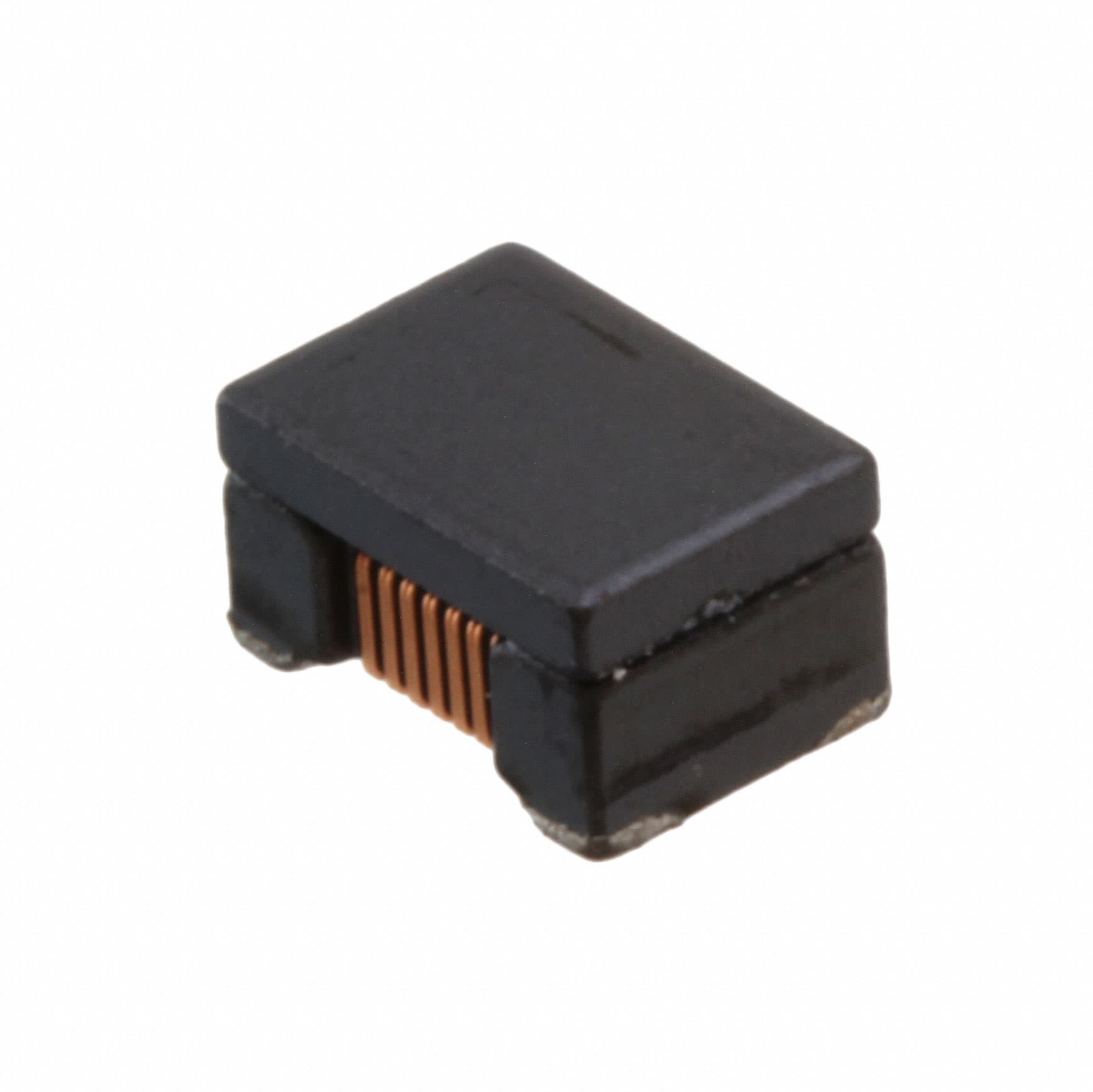

The Murata DLW43SH110XK2L is a chip common mode choke coil designed for automotive powertrain/safety and infotainment/comfort applications. It features an inductance of 11µH at 100kHz, with a maximum DC resistance of 500mΩ and a current rating of 360mA. The component is rated for 50V DC operation and can withstand 125V, with a minimum insulation resistance of 10MΩ and an ESD rating of 25kV (ESD rank 6).
This common mode filter is a 2-line signal line type, suitable for suppressing common mode noise. It is AEC-Q200 qualified, ensuring reliability for automotive electronics. The operating and storage temperature range is -40°C to 125°C.
The component is offered in a surface mount 1812 (4532 Metric) package with dimensions of 4.50mm x 3.20mm and a maximum height of 2.80mm. Compliance with RoHS3 and REACH is indicated, though unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
| 10+ | $0.73 | $0.73 |
| 25+ | $0.64 | $0.64 |
| 100+ | $0.58 | $0.58 |
| 250+ | $0.54 | $0.54 |
| 500+ | $0.51 | $0.51 |
| 1,000+ | $0.46 | $0.46 |
| 2,500+ | $0.43 | $0.43 |
| 5,000+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50V DC.
1812 (4532 Metric).
-40°C to 125°C.
RoHS3 Compliant (unverified).
11µH at 100kHz.
500mΩ.
Yes, rated AEC-Q200.
