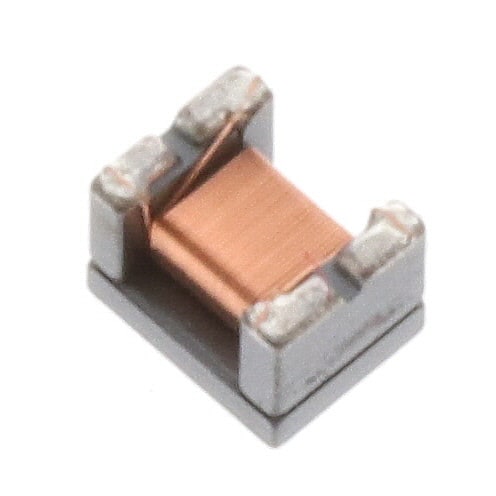

The Murata DLW32MH101XT2L is a chip common mode choke coil from the DLW32MH_XT series, qualified to AEC-Q200 for automotive applications. This component is designed for use in automotive powertrain and safety equipment, as well as infotainment and comfort systems.
Key electrical specifications include a common mode inductance of 80µH (with -25%/+50% tolerance at 0.1 MHz), a maximum rated current of 125mA, and a maximum rated voltage of 100VDC. The DC resistance is typically 2.6Ω ±20%, with a maximum of 3.12Ω. The component also features a minimum withstanding voltage of 50VDC and a minimum insulation resistance of 10MΩ.
The DLW32MH101XT2L is a surface mount device with a horizontal, 4 PC pad package. Its dimensions are 3.20mm in length, 2.50mm in width, and a maximum height of 2.50mm. It operates over a temperature range of -40°C to +125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.50 | $2.50 |
| 10+ | $2.06 | $2.06 |
| 25+ | $1.80 | $1.80 |
| 100+ | $1.69 | $1.69 |
| 250+ | $1.57 | $1.57 |
| 500+ | $1.54 | $1.54 |
| 1,000+ | $1.34 | $1.34 |
| 1,500+ | $1.26 | $1.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The common mode inductance is 80µH at 0.1 MHz, with a tolerance of -25%/+50%.
The maximum rated current is 125mA.
The operating temperature range is -40°C to +125°C.
The component is listed as RoHS3 Compliant, but this is unverified.
The package is a surface mount, horizontal, 4 PC pad.
The typical DC resistance is 2.6Ω ±20%, with a maximum of 3.12Ω.
Yes, it is AEC-Q200 qualified for automotive powertrain and safety equipment.
