| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37,000 pcs
|
37000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,423 pcs
|
5423 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
5,027 pcs
|
5027 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,860 pcs
|
1860 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,822 pcs
|
1822 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
344 pcs
|
344 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

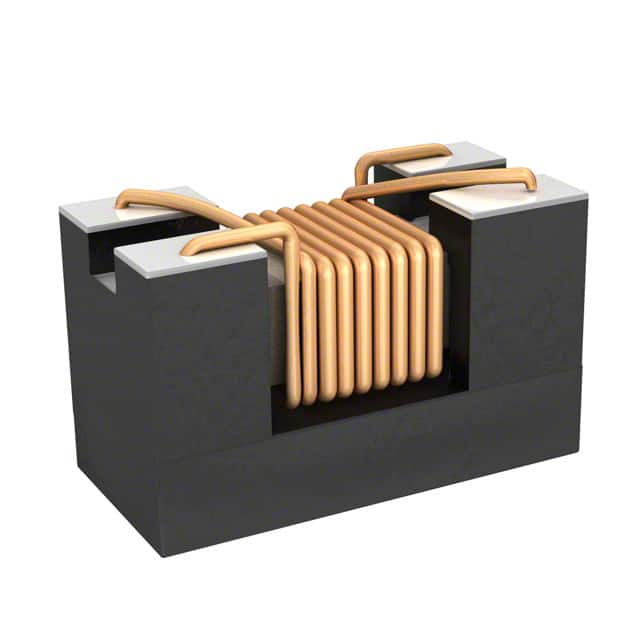

The Murata DLW31SN900SQ2L is a wire wound chip common mode choke coil from the DLW31SN series. It is designed for signal line filtering applications and provides a common mode impedance of 90 Ω at 100 MHz with a tolerance of ±25%.
This component has a maximum DC resistance of 300 mΩ and a rated current of 370 mA. It is rated for a DC voltage of 50 V and has a withstanding voltage of 125 V DC. The insulation resistance is a minimum of 10 MΩ at rated voltage.
The DLW31SN900SQ2L is housed in a horizontal, 4 PC pad surface mount package measuring 3.20 mm by 1.60 mm with a maximum height of 2.10 mm. It operates over a temperature range of -40°C to +85°C and is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
| 10+ | $0.78 | $0.78 |
| 25+ | $0.68 | $0.68 |
| 100+ | $0.64 | $0.64 |
| 250+ | $0.60 | $0.60 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.53 | $0.53 |
| 2,000+ | $0.49 | $0.49 |
| 4,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The common mode impedance is 90 Ω at 100 MHz with a tolerance of ±25%.
The maximum rated current is 370 mA.
The maximum DC resistance is 300 mΩ.
The operating temperature range is -40°C to +85°C.
The package size is 3.20 mm by 1.60 mm with a maximum height of 2.10 mm.
The DC voltage rating is 50 V.
It is a surface mount component.
