| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Character Height | |
| Character Set | |
| Color | |
| Configuration | |
| Height | |
| Interface | |
| Length | |
| Millicandela Rating | |
| Number of Characters | |
| Operating Temperature | |
| Width |

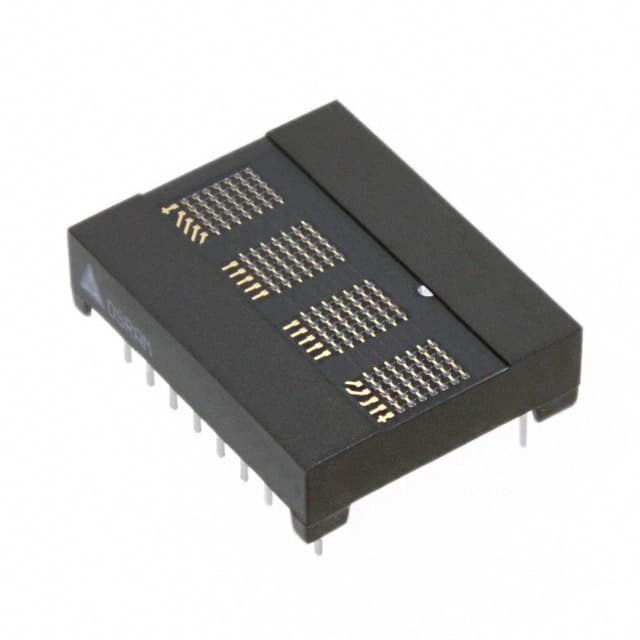

The DLR2416 is a versatile 4-character intelligent display module featuring a 5x7 dot matrix configuration and red illumination. This display module integrates memory, an ASCII ROM decoder, multiplexing circuitry, and drivers into a single CMOS IC, simplifying system design. It supports asynchronous and random data entry, allowing each digit to be addressed independently and to retain its displayed character until updated.
Key features include a 0.200" character height, a wide viewing angle, and a fast access time of 110 ns at 25°C. The module supports 128 special ASCII characters for multiple European languages. It is designed for easy interconnection and can be X/Y stackable for flexible display configurations. The operating temperature range is extended from -40°C to +85°C, making it suitable for various environmental conditions.
The DLR2416 is suitable for stationary equipment and applications requiring clear alphanumeric displays. Its built-in features reduce external component count and simplify board layout. The display is wave solderable, facilitating automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DLR2416 display features a 5x7 dot matrix configuration for each character.
The character height for the DLR2416 display is 0.200 inches.
The DLR2416 display operates within a temperature range of -40°C to +85°C.
The DLR2416 display is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the DLR2416 display is 1.
The DLR2416 display is REACH Unaffected.
