DLPC3479CZEZ

The DLPC3479CZEZ from Texas Instruments is an active DLP controller specifically designed to work with the DLP4710LC digital micromirror device (DMD). This component is part of the DLP4710LC chipset and enables reliable operation for video display applications.

Key technical specifications include a maximum display resolution of 1080p (1920x1080) and an operating temperature range of -30°C to 85°C. It supports input frame rates up to 120Hz, with a pixel clock up to 155MHz. The controller offers flexible pattern display modes with high-speed pattern rates up to 1440Hz for 1-bit data and 180Hz for 8-bit data.

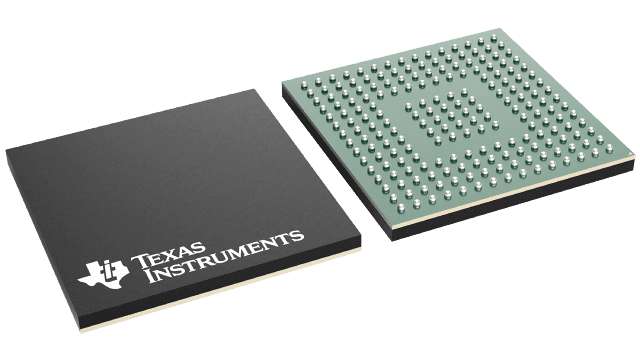

This device features multiple interface options, including I²C, Parallel, and SPI, facilitating system integration. It also supports advanced image processing capabilities such as IntelliBright™ algorithms, image resizing, and 1D keystone correction. The DLPC3479CZEZ is housed in a 201-NFBGA package, suitable for surface mounting.

Designed for applications requiring precise light control and pattern display, such as machine vision and digital exposure, this controller offers programmable exposure times and flexible trigger signals for synchronization with cameras or sensors. It can store over 1000 patterns in its flash memory, simplifying system design by potentially eliminating the need for a video interface in certain configurations.
