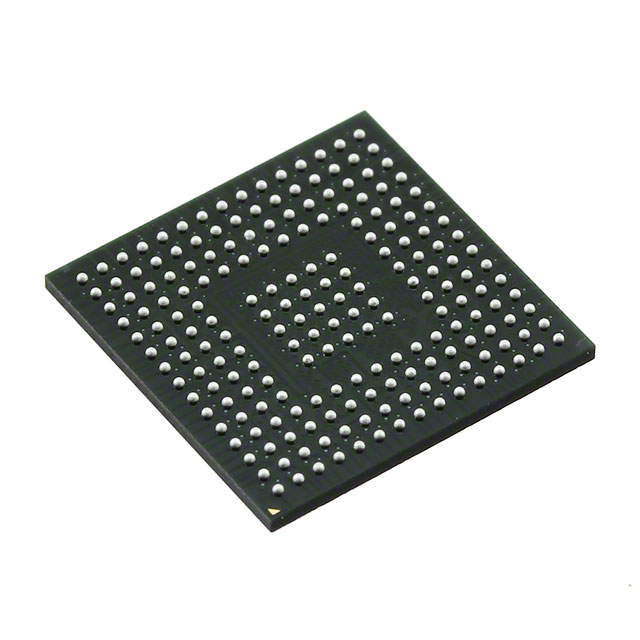

DLPC3437CZEZ

The DLPC3437CZEZ from Texas Instruments is an active DLP display controller specifically designed to work with the DLP3310 Digital Micromirror Device (DMD). This controller is part of the DLP3310 chipset and facilitates reliable operation of the DMD, enabling small form factor display solutions.

Key features include support for input image sizes up to 1080p resolution and input frame rates up to 120 Hz (60 Hz at 1080p). It offers a low-power DMD interface with interface training capabilities. The device supports a 24-bit input pixel interface with a parallel interface protocol and a pixel clock up to 155 MHz. It also supports dual FPD-link input pixel interfaces via an LVDS interface.

Pixel data processing is enhanced with the IntelliBright™ suite of image processing algorithms, including Content Adaptive Illumination Control (CAIC) and Local Area Brightness Boost (LABB). Other processing capabilities include color coordinate adjustment, programmable degamma, image resizing (scaling), and color space conversion. The controller includes embedded frame memory (eDRAM) and supports external flash for configuration.

System features include I²C control for device configuration, programmable splash screens, and programmable LED current control. It operates within a temperature range of -30°C to 85°C and is housed in a 201-NFBGA package (13 mm x 13 mm). This controller is designed to be paired with the DLPA3000 or DLPA3005 PMIC and LED driver.
