Mfr Part #:

DLPC3436CZVB

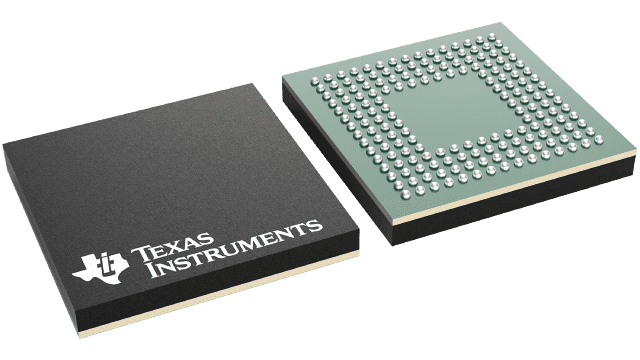

The Texas Instruments DLPC3436CZVB is a display driver designed for DLP230NP chipsets. It supports input resolutions up to 1080p and operates within a temperature range of -30°C to 85°C.
