Mfr Part #:

DLPC3433CZVB

The Texas Instruments DLPC3433CZVB is a DLP display controller supporting input image sizes up to 720p. It features a low-power DMD interface and operates within a -30°C to 85°C temperature range.

✓ Total Stock: 3,275 pcs

$ Price Range: $12.65

DLPC3433CZVB Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	3,253 pcs On Request	3253 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	22 pcs On Request	22 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

DLPC3433CZVB Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Display Drivers
Manufacturer Name	Texas Instruments
Display Type	DLP
Interface	I²C
Mounting Type	Surface Mount
Operating Temperature	-30°C to 85°C

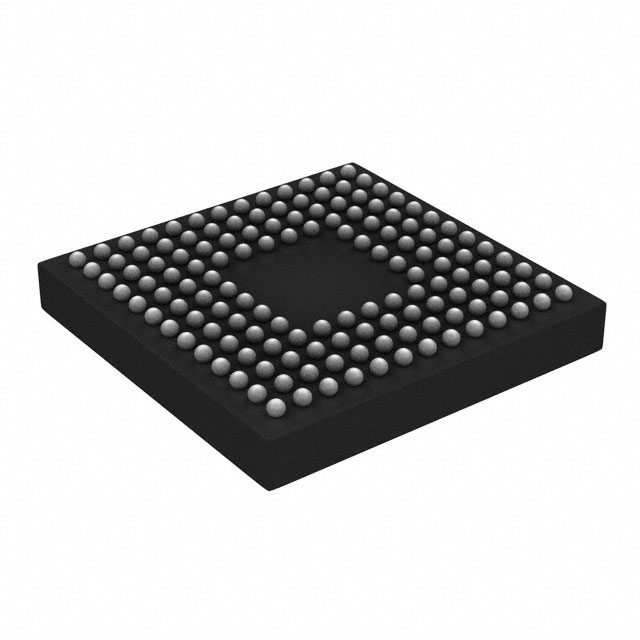

Supplier Device Package	176-NFBGA (7x7)
Voltage	1.1V

View Similar Products (0)

DLPC3433CZVB Description

Short technical summary and product information.

The DLPC3433CZVB from Texas Instruments is a DLP display controller designed for use with the DLP3010 DMD. It supports input image sizes up to a maximum resolution of 720p (1280x720).

Key features include a low-power DMD interface with interface training, input frame rates up to 120 Hz, and advanced pixel data processing capabilities. The controller supports the IntelliBright suite of image processing algorithms, content adaptive illumination control, and local area brightness boost. It also offers image resizing, 1D keystone correction, color coordinate adjustment, and programmable degamma.

With a pixel clock up to 155 MHz and multiple input pixel data format options including Parallel or BT656, the DLPC3433CZVB provides flexible connectivity. It also supports the MIPI DSI interface type 3. The device operates at 1.1V and has an operating temperature range of -30°C to 85°C.

Packaged in a 176-NFBGA (7x7) format, this surface mount display controller is suitable for various projection and display applications. It is designed to be paired with DLPA2000, DLPA2005, DLPA3000, or DLPA3005 PMICs and LED drivers.

DLPC3433CZVB Quick Information

Product Type: Display Controller

Canonical Name: DLPC3433CZVB Display Controller

Subcategory: Display Drivers

DLPC3433CZVB Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

DLPC3433CZVB Estimated Pricing

Qty	Low	High
1+	$12.65	$12.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

DLPC3433CZVB Features

Supports input image sizes up to 720p.
Features IntelliBright image processing algorithms.
Operates at input frame rates up to 120 Hz.
Pixel clock up to 155 MHz.
Packaged in 176-NFBGA (7x7) surface mount.

DLPC3433CZVB Applications

Ideal for DLP projection systems.
Suitable for display control applications.
Used in embedded display modules.
Supports high frame rate video.

DLPC3433CZVB FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage of the DLPC3433CZVB?

1.1V

What package does the DLPC3433CZVB come in?

176-NFBGA (7x7)

What is the operating temperature range?

-30°C to 85°C

What is the maximum display resolution supported?

720p (1280x720)

What input frame rates can the DLPC3433CZVB handle?

Up to 120 Hz

What is the pixel clock speed?

Up to 155 MHz

What is the MIPI DSI lane speed?

Up to 470 Mbps per lane

DLPC3433CZVB Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

DLPC3430CZVBR

Texas Instruments

The Texas Instruments DLPC3430CZVBR is a DLP Display Controller designed for WVGA resolution. It features an operating temperature range of -30°C to 85°C and an I2C interface.

View Part
