The DLPC120ZXSQ1 from Texas Instruments is an Automotive Digital Micromirror Device (DMD) controller. It is part of a chipset compatible with DLP3030-Q1, DLP3020-Q1, or DLP3021-Q1 DMDs.
This controller accepts video input and formats data for display, supporting a maximum resolution of 864 x 480. It features a 24-bit parallel video input interface with support for RGB888, RGB666, or RGB565 formats, operating at a 60 Hz frame rate and a pixel clock up to 40 MHz. Video processing capabilities include image scaling, programmable de-gamma curve, bezel adjustment, and horizontal/vertical image flip.

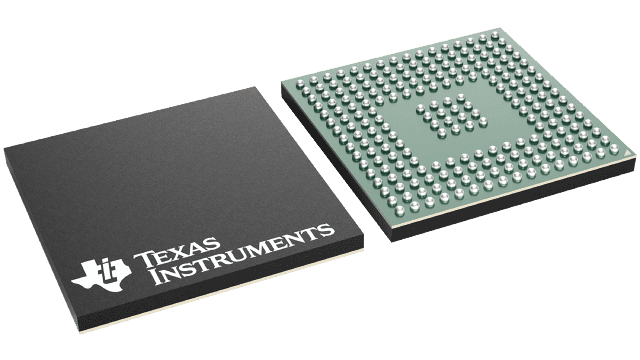

The DLPC120ZXSQ1 is AEC-Q100 qualified for automotive applications, with an operating temperature range of -40°C to 105°C. It is packaged in a 216-pin NFBGA (ZXS) with a 1.0 mm pitch, measuring 289 mm² (17 mm x 17 mm).
External memory support includes DDR2 with a 312 MHz clock (624 MHz data rate) and Serial flash with a 39 MHz clock. System control is managed via an I2C communication interface. The device also offers programmable splash screens, DMD power and reset driver control, and programmable flash-based configuration. For testing, it includes a built-in test pattern generator and JTAG with boundary scan support.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.04 | $11.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DLPC120ZXSQ1 supports a maximum display resolution of 864 x 480.
The operating temperature range is -40°C to 105°C.
The DLPC120ZXSQ1 is compatible with the DLP3020-Q1 and DLP3030-Q1 chipset families.
It uses a 24-bit parallel interface supporting RGB888, RGB666, or RGB565 formats.
The device supports a 60 Hz frame rate and a pixel clock up to 40 MHz.
It supports DDR2 with a 312 MHz clock (624 MHz data rate) and Serial flash with a 39 MHz clock.
The DLPC120ZXSQ1 is packaged in a 216-pin NFBGA (ZXS) measuring 289 mm² (17 mm x 17 mm) with a 1.0 mm pitch.
