| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Weight |

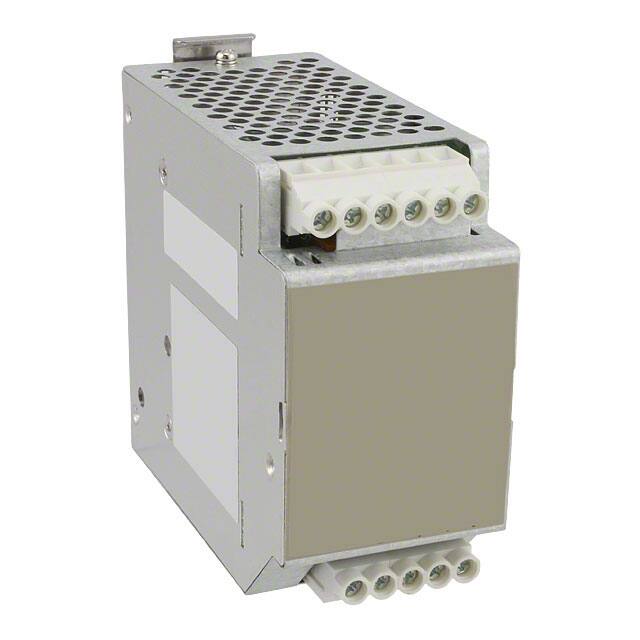

The TDK Corporation DLP-PU/E is a power supply parallel or redundancy module. It is designed to work with DLP power supplies, providing features such as OR-ing diodes, alarm signals, and LED indicators. The module supports DIN rail mounting for easy installation.
Key electrical specifications include an input voltage range of 21-28 VDC, with a maximum input current of 20A per input. The maximum output current is also 20A, and it features a voltage drop of 0.5V. The module includes relay contacts rated for a maximum of 28VDC at 1A or 120VAC at 0.5A.
Environmental specifications include an operating temperature range of -10 to +70°C and a storage temperature range of -30 to +90°C. The module is designed for convection cooling and operates within a humidity range of 30-90% RH (non-condensing).
Mechanical specifications include dimensions of 50 x 97 x 110mm and a weight of 470g. The module comes with a three-year warranty.
The input voltage range is 21-28 VDC.
The maximum output current is 20A.
The operating temperature range is -10 to +70°C.
It is designed for DIN rail mounting.
The dimensions are 50 x 97 x 110mm.
The warranty period is three years.
