| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Connector Usage | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

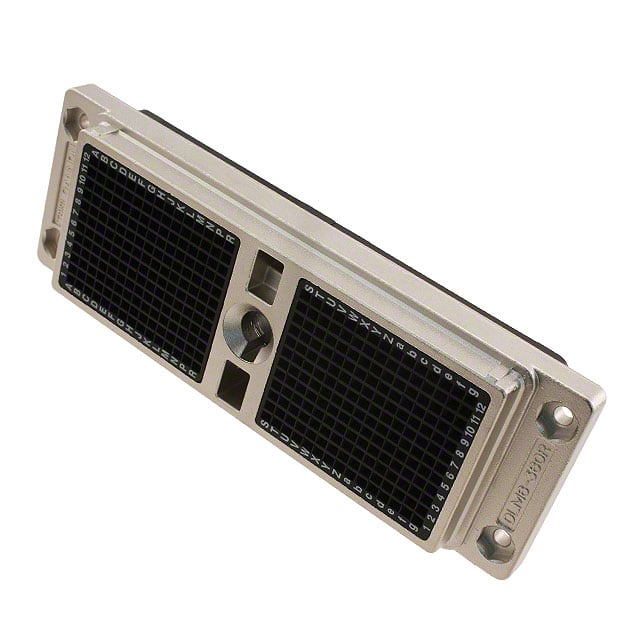

The DLM6-360R is a high-density backplane connector housing manufactured by ITT Cannon. It offers 360 positions arranged in 12 rows with a 2.54mm (0.100") pitch, enabling dense signal routing in compact systems. The housing is designed for panel mount installation, providing secure mechanical retention.
This connector housing includes advanced features such as an actuating camshaft socket for Zero Insertion Force (ZIF) operation, which reduces wear on contacts during mating and unmating. Integrated shielding helps protect signal integrity in electromagnetic interference (EMI) sensitive environments. The part is classified as a receptacle for use with non-gendered contacts, offering flexibility in mating configurations.
The DLM6-360R is intended for backplane interconnect applications where reliability and contact density are critical. It is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (Unlimited). For detailed electrical and mechanical specifications, refer to the manufacturer's datasheet.
360 positions.
2.54mm (0.100").
Panel mount.
Yes, it features a Zero Insertion Force (ZIF) design with an actuating camshaft socket.
12 rows.
Receptacle.
Yes, it is RoHS3 compliant.
