| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Connector Usage | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

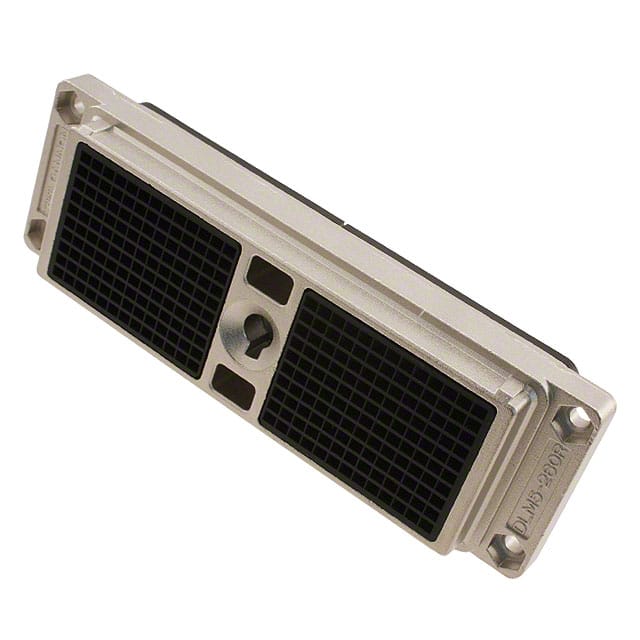

The DLM5-260R is a backplane connector housing manufactured by ITT Cannon. It is designed for use with non-gendered contacts and serves as a receptacle in high-density interconnect systems. The housing accommodates 260 positions arranged in 10 rows with a pitch of 2.54mm (0.100 inches). It is panel mount, allowing for secure installation in equipment chassis. Key features include an actuating camshaft socket, integral shielding for EMI protection, and a zero insertion force (ZIF) mechanism to reduce wear on contacts during mating. This housing is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). It is suitable for applications requiring reliable, high-density connections in industrial, military, and aerospace environments. The housing is designed for use with appropriate contacts (not included) and is part of the DL series of ZIF connectors from ITT Cannon.
260 positions.
10 rows.
2.54mm (0.100 inches).
Panel mount.
Actuating camshaft socket, shielding, and zero insertion force (ZIF).
Yes, it is RoHS3 compliant.
MSL 1 (Unlimited).
