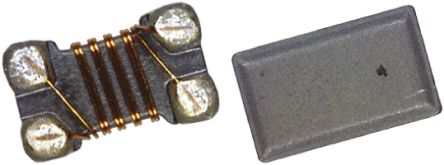

DLM11SN900HY2L Surface mount common mode choke from Murata with 90 Ohm impedance at 100 MHz, 100mA max current, and 2 lines. Designed for signal line filtering in a compact 0504 package.
Mfr Part #:

DLM11SN900HY2L

Available from 3 distributors
Mfr Name: Murata
Murata
Surface mount common mode choke from Murata with 90 Ohm impedance at 100 MHz, 100mA max current, and 2 lines. Designed for signal line filtering in a compact 0504 package.
✓ Total Stock: 138,464 pcs
$ Price Range: $0.08

DLM11SN900HY2L Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
132,189 pcs
On Request
132189 pcs On Request 1 On Request On Request 21+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,272 pcs
On Request
6272 pcs On Request 1 On Request On Request 1802 On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DLM11SN900HY2L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

DLM11SN900HY2L Description

Short technical summary and product information.

The Murata DLM11SN900HY2L is a surface mount common mode choke designed for signal line filtering. It features a nominal impedance of 90 Ohms at 100 MHz and a maximum current rating of 100mA. The component has a maximum DC resistance of 1.38 Ohms and a voltage rating of 5V.



This choke is housed in a compact 0504 (1210 Metric) package with 4 leads, measuring 1.25mm x 1.00mm with a maximum height of 0.60mm. It is designed for surface mount assembly and operates over a temperature range of -40°C to 85°C.



With two lines, this common mode choke is suitable for suppressing common mode noise in signal lines. Its small footprint makes it ideal for space-constrained applications in consumer electronics, telecommunications, and industrial equipment.

DLM11SN900HY2L Quick Information

Product Type: Common Mode Choke
Series: DLM11
Canonical Name: Murata DLM11SN900HY2L Common Mode Choke, 90 Ohm @ 100 MHz, 100mA, 2 Lines, Surface Mount
Subcategory: Signal Line Filter

DLM11SN900HY2L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 - Unlimited
REACH Status: REACH Unaffected

DLM11SN900HY2L Estimated Pricing

Qty Low High
4,000+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

DLM11SN900HY2L Features

  • 90 Ohm impedance at 100 MHz.
  • 100mA maximum current rating.
  • Surface mount 0504 package.
  • Two lines for common mode filtering.
  • Operating temperature range -40°C to 85°C.

DLM11SN900HY2L Applications

  • Suppress common mode noise in signal lines.
  • Use in consumer electronics and telecommunications.
  • Ideal for compact, space-constrained designs.

DLM11SN900HY2L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the DLM11SN900HY2L?

5V.

What is the package/case of this common mode choke?

0504 (1210 Metric), 4 Lead.

What is the operating temperature range?

-40°C to 85°C.

Is the DLM11SN900HY2L RoHS compliant?

RoHS3 Compliant (unverified).

What is the impedance at 100 MHz?

90 Ohms.

What is the maximum current rating?

100mA.

How many lines does this choke have?

2 lines.
