| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Filter Type | |
| Frequency | |
| Height (Max) | |
| Insertion Loss | |
| Length | |
| Mounting Type | |
| Tape & Reel | |
| Width |

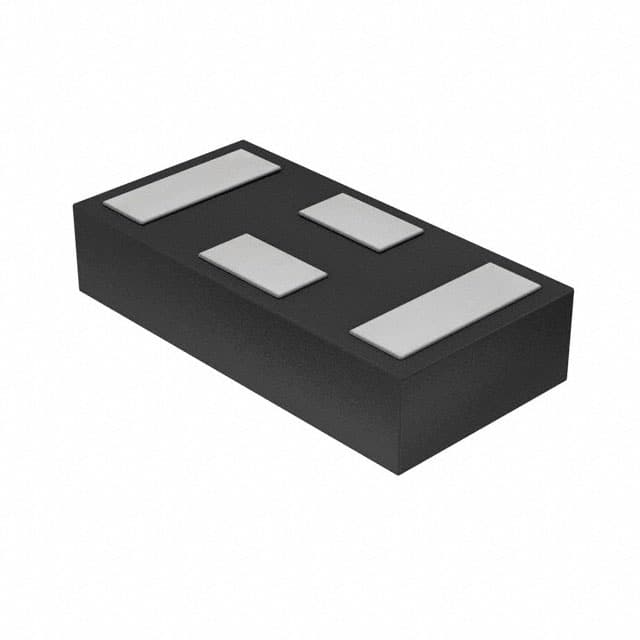

The TDK DLF162500LT-5028A1 is a low pass RF filter designed for signal filtering at a center frequency of 2.45GHz. It features a low insertion loss of 0.33dB, making it suitable for applications where signal integrity is important.
The filter is housed in a compact 0603 (1608 metric) surface mount package with a 4 PC pad configuration. Its dimensions are 1.60mm in length, 0.80mm in width, and a maximum height of 0.40mm, allowing for space-efficient PCB designs.
This component is intended for use in RF circuits operating around the 2.45GHz frequency band, such as those found in wireless communication systems. The surface mount design facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.40 | $0.40 |
| 25+ | $0.34 | $0.34 |
| 100+ | $0.32 | $0.32 |
| 250+ | $0.30 | $0.30 |
| 500+ | $0.28 | $0.28 |
| 1,000+ | $0.26 | $0.26 |
| 4,000+ | $0.24 | $0.24 |
| 8,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The center frequency is 2.45GHz.
The insertion loss is 0.33dB.
It comes in a 0603 (1608 metric) surface mount package with a 4 PC pad configuration, measuring 1.60mm x 0.80mm with a maximum height of 0.40mm.
This is a low pass filter.
The mounting type is surface mount.
