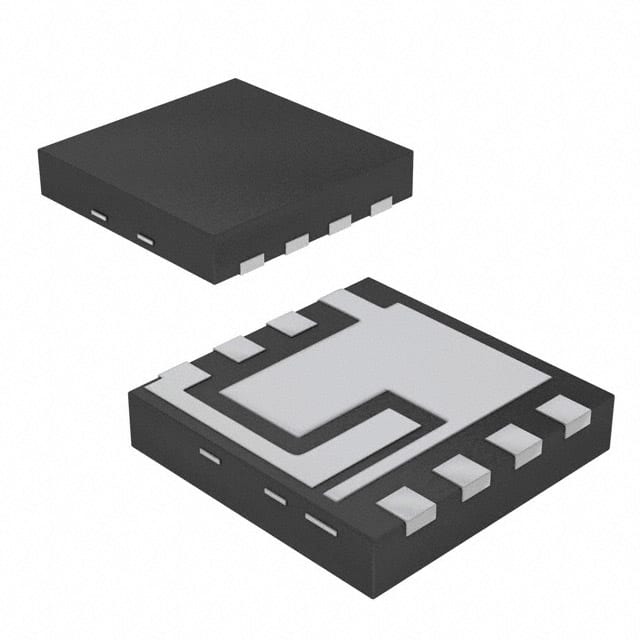

DLD101-7 The Diodes Incorporated DLD101-7 is a linear mode LED driver IC designed for illumination, signage, and backlighting applications. It features a 1A output current capability and operates up to 50V.
Mfr Part #:

DLD101-7

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated DLD101-7 is a linear mode LED driver IC designed for illumination, signage, and backlighting applications. It features a 1A output current capability and operates up to 50V.
✓ Total Stock: 31,892 pcs
$ Price Range: $0.17

DLD101-7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
21,000 pcs
On Request
21000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
10,892 pcs
On Request
10892 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DLD101-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Dimming
Input Voltage
Internal Switch(s)
Mounting Type
Number of Channels
Number of Outputs
Operating Temperature
Operating Voltage
Output Current
Supplier Device Package
Supply Voltage
Tape & Reel
Type
Voltage
View Similar Products (0)

DLD101-7 Description

Short technical summary and product information.

The Diodes Incorporated DLD101-7 is a linear mode current sink LED driver, primarily designed for driving LEDs in illumination, signage, and backlighting applications. It is ideally suited for constant current applications, utilizing a VBE referenced current sink circuit.



The device integrates an N-Channel Enhancement Mode MOSFET (Q1) and a Base Accessible Pre-Biased Transistor (Q2). It supports high voltage operation up to 50V and offers a maximum output current of 1A. The DLD101-7 is capable of PWM dimming and features a small form factor surface mount package, specifically the DFN3030D-8.



Key electrical characteristics include a drain source voltage of 100V and a supply voltage of up to 50V. The operating temperature range is -55°C to 150°C. The component is RoHS3 compliant and has a Moisture Sensitivity Level of 1.



This LED driver is suitable for applications requiring precise linear current control for LED strings. Its compact package and high voltage capability make it a versatile choice for various lighting designs.

DLD101-7 Quick Information

Product Type: LED Driver
Canonical Name: Diodes Incorporated DLD101-7 Linear LED Driver
Subcategory: Integrated Circuits

DLD101-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free By Design

DLD101-7 Estimated Pricing

Qty Low High
1+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

DLD101-7 Features

  • Linear mode constant current sink driver.
  • Designed for LED illumination applications.
  • High voltage capable up to 50V.
  • Supports PWM dimming functionality.
  • Compact DFN3030D-8 surface mount package.

DLD101-7 Applications

  • Ideal for LED signage applications.
  • Suitable for backlighting designs.
  • Used in general illumination systems.
  • Constant current LED string driving.
