Mfr Part #:

DLCBST-9-01

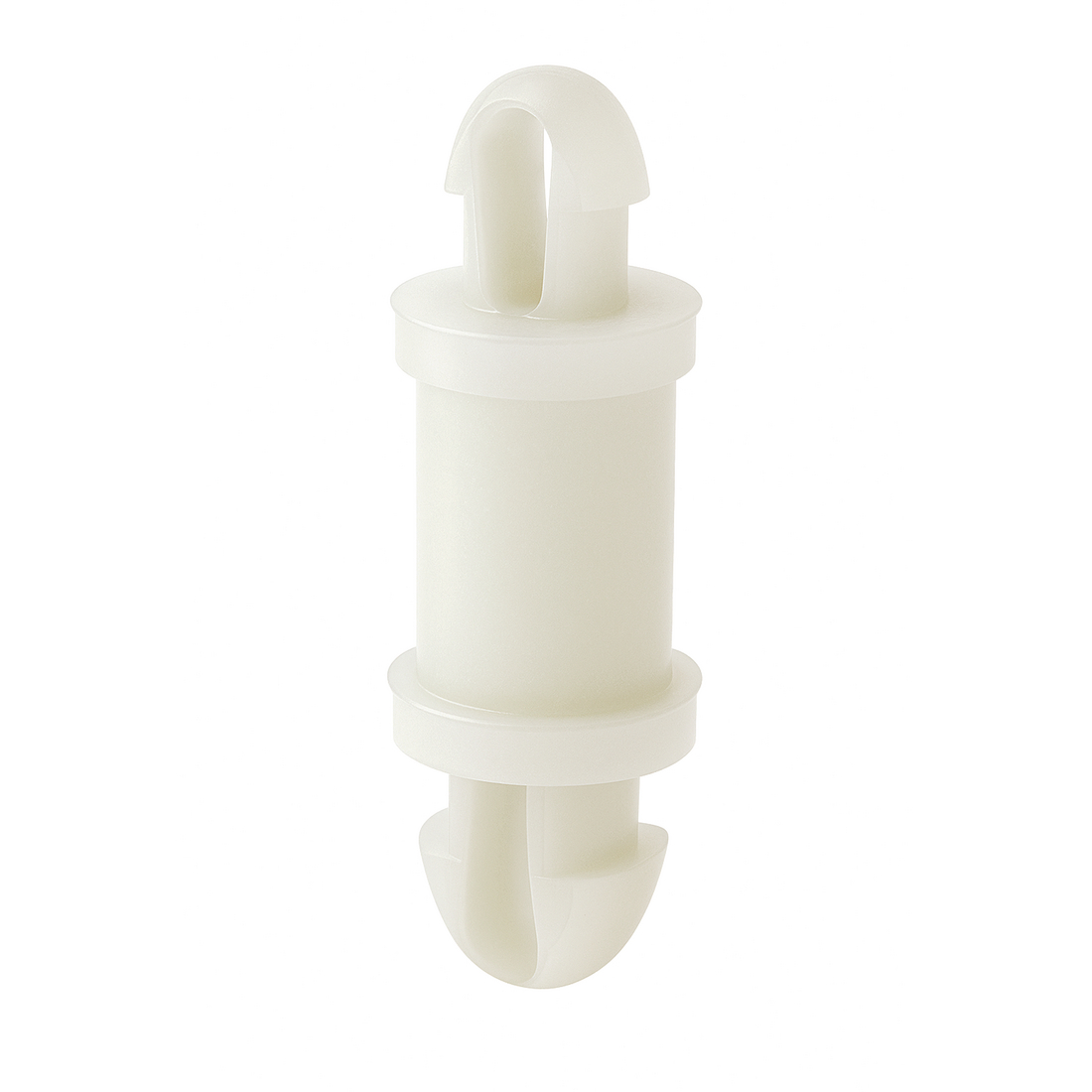

Snap lock nylon board support with 0.563" between board height and 0.100" support hole diameter. Designed for 0.064" panel thickness.

✓ Total Stock: 6,901 pcs

$ Price Range: $0.25 - $0.46

DLCBST-9-01 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	6,901 pcs On Request	6901 pcs	On Request	1	On Request	On Request	On Request	On Request	2026-04-21 14:15:08

DLCBST-9-01 Description

Short technical summary and product information.

The DLCBST-9-01 is a snap lock board support from Essentra Components, manufactured from nylon. It features a snap lock mounting type and a snap lock holding type, providing secure attachment to printed circuit boards.

Key mechanical specifications include an overall length of 21.56mm (0.849"), a between board height of 14.30mm (0.563"), and a support hole diameter of 2.54mm (0.100"). The support panel thickness and mounting panel thickness are both 1.63mm (0.064"). The mounting hole diameter is also 2.54mm (0.100").

This board support is suitable for applications requiring a fixed spacing between boards or between a board and a chassis. The nylon material offers good electrical insulation and mechanical strength.

DLCBST-9-01 Quick Information

Product Type: Board Support

Series: DLCBST

Canonical Name: Snap Lock Nylon Board Support, 0.563" Between Board Height, 0.100" Support Hole Diameter

Subcategory: Snap Lock

DLCBST-9-01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

DLCBST-9-01 Estimated Pricing

Qty	Low	High
1+	$0.46	$0.46
10+	$0.36	$0.36
100+	$0.31	$0.31
500+	$0.30	$0.30
1,000+	$0.29	$0.29
10,000+	$0.25	$0.25
25,000+	$0.25	$0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

DLCBST-9-01 Features

Snap lock mounting and holding type.
Nylon material for insulation and strength.
0.563" between board height.
0.100" support hole diameter.
0.064" panel thickness compatibility.

DLCBST-9-01 Applications

Spacing between stacked printed circuit boards.
Mounting boards to chassis or enclosures.
Prototyping and custom electronic assemblies.
