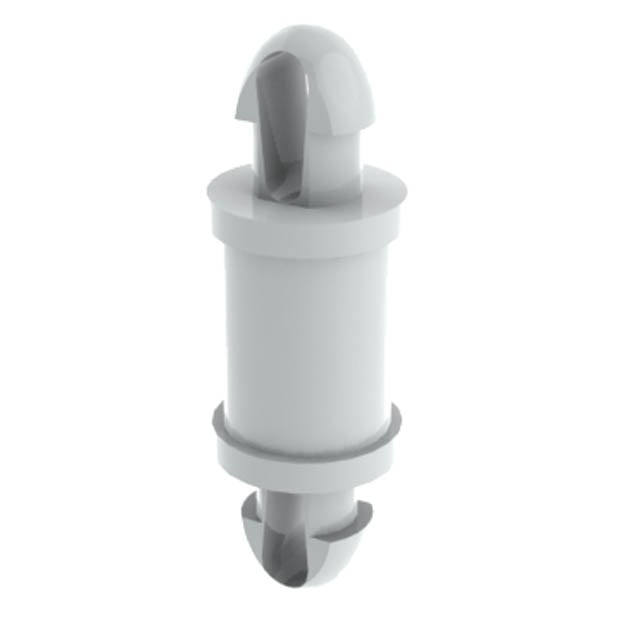

DLCBST-8-01 Snap lock nylon board support with 0.500" between board height and 0.100" mounting hole diameter.
Mfr Part #:

DLCBST-8-01

Available from 1 distributors
Mfr Name: Essentra Components
Essentra Components
Snap lock nylon board support with 0.500" between board height and 0.100" mounting hole diameter.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.24 - $0.45

DLCBST-8-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DLCBST-8-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Between Board Height
Holding Type
Length
Material
Mounting Hole Diameter
Mounting Panel Thickness
Mounting Type
Support Hole Diameter
Support Panel Thickness
View Similar Products (0)

DLCBST-8-01 Description

Short technical summary and product information.

The DLCBST-8-01 is a snap lock board support from Essentra Components, designed for secure mounting of printed circuit boards. It is made of nylon, providing electrical insulation and mechanical durability. The support features a snap lock mounting type and holding type, ensuring easy installation without additional hardware.



Key dimensions include an overall length of 19.96mm (0.786"), a between board height of 0.500" (12.70mm), and a support hole diameter of 0.100" (2.54mm). The mounting hole diameter is also 0.100" (2.54mm), and both the support panel thickness and mounting panel thickness are 0.064" (1.63mm). These specifications make it suitable for spacing boards in stacked assemblies.



The snap lock design allows for quick assembly and disassembly, making it ideal for prototyping and production environments. The nylon material offers good resistance to common solvents and mechanical stress.

DLCBST-8-01 Quick Information

Product Type: Board Support
Canonical Name: Snap Lock Nylon Board Support, 0.500" Between Board Height
Subcategory: Snap Lock Board Support

DLCBST-8-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DLCBST-8-01 Estimated Pricing

Qty Low High
1+ $0.45 $0.45
10+ $0.35 $0.35
100+ $0.30 $0.30
500+ $0.29 $0.29
1,000+ $0.27 $0.27
10,000+ $0.25 $0.25
25,000+ $0.24 $0.24
50,000+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

DLCBST-8-01 Features

  • Snap lock mounting for secure PCB retention.
  • Nylon material provides insulation and durability.
  • 0.500" between board height for spacing.
  • 0.100" mounting hole diameter for standard pins.
  • Supports panel thickness up to 0.064".

DLCBST-8-01 Applications

  • Used for mounting PCBs in electronic enclosures.
  • Ideal for spacing boards in stacked assemblies.
  • Suitable for prototyping and production runs.
  • Common in industrial and consumer electronics.

DLCBST-8-01 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the material of the DLCBST-8-01 board support?

The DLCBST-8-01 is made of nylon.

What is the between board height of the DLCBST-8-01?

The between board height is 0.500" (12.70mm).

What is the mounting hole diameter?

The mounting hole diameter is 0.100" (2.54mm).

Is the DLCBST-8-01 RoHS compliant?

The part is listed as RoHS3 compliant, but this is unverified.

What is the overall length of the board support?

The overall length is 19.96mm (0.786").

What panel thickness does the support accommodate?

The support panel thickness and mounting panel thickness are both 0.064" (1.63mm).
