| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Between Board Height | |
| Holding Type | |
| Length | |
| Material | |
| Mounting Hole Diameter | |
| Mounting Panel Thickness | |
| Mounting Type | |
| Support Hole Diameter | |
| Support Panel Thickness |

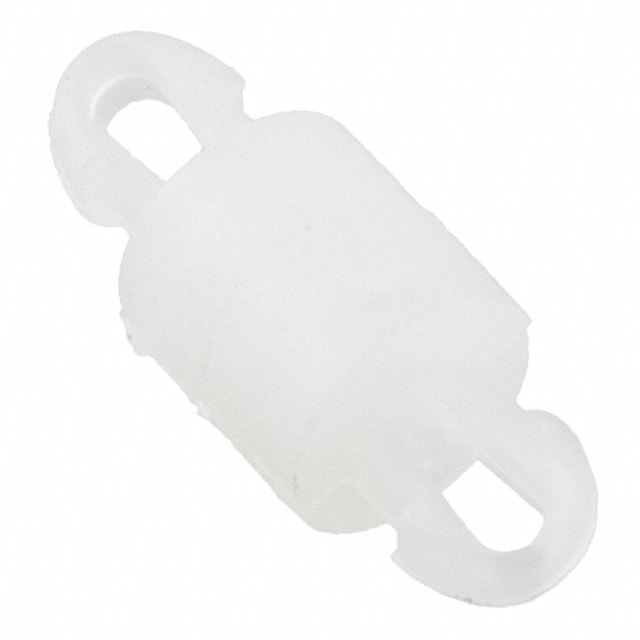

The DLCBST-3-01 is a snap lock board support manufactured by Essentra Components. It is constructed from nylon and designed for secure mounting of printed circuit boards. The snap lock mounting type provides a quick and reliable installation without the need for additional hardware.
This board support features a between board height of 0.188 inches (3/16 inch), suitable for spacing boards at a fixed distance. The support hole diameter and mounting hole diameter are both 0.100 inches (2.54 mm), accommodating standard PCB holes. The panel thickness accepted is 0.064 inches (1.63 mm). With a total length of 12.06 mm (0.475 inches), it provides ample clearance for component placement.
Typical applications include spacing and securing PCBs in enclosures, test fixtures, and consumer electronics. The nylon material offers good insulation and mechanical strength. The snap lock design ensures a firm hold without requiring additional fasteners.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.30 | $0.30 |
| 100+ | $0.26 | $0.26 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.23 | $0.23 |
| 2,000+ | $0.23 | $0.23 |
| 25,000+ | $0.21 | $0.21 |
| 50,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RoHS3 Compliant (unverified).
Snap Lock.
Nylon.
0.188" (4.78 mm) 3/16".
0.100" (2.54 mm).
0.064" (1.63 mm).
Essentra Components.
