| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,375 pcs
|
1375 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Tolerance |

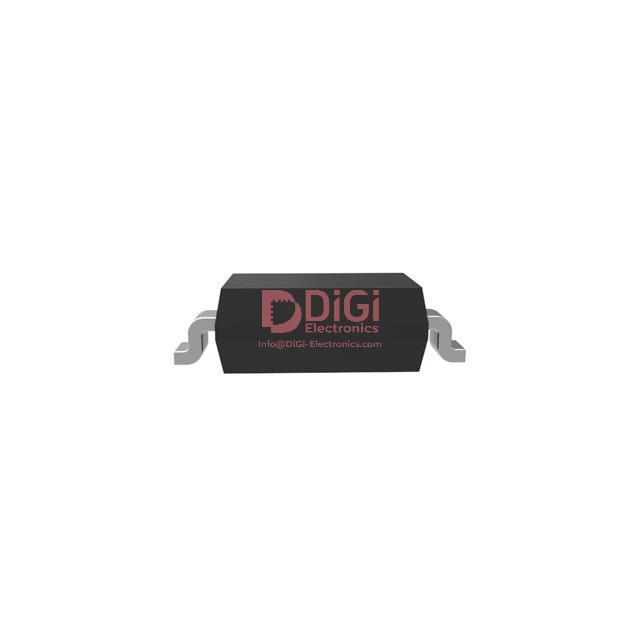

The Diodes Incorporated DL5230B is a single Zener diode in a surface mount SOD-123 package. It is designed for voltage regulation with a nominal Zener voltage of 4.7V and a tolerance of ±5%.
This component has a maximum power dissipation of 500mW and a low reverse leakage current of 5µA at 2V. The forward voltage is a maximum of 900mV at 10mA. The operating temperature range is from -55°C to 150°C.
Its surface mountable SOD-123 package makes it suitable for various electronic circuits where space is a consideration. The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level (MSL) is 1 Unlimited, and REACH status is REACH Unaffected, though these compliance details are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 4.7V.
The maximum power dissipation is 500mW.
The DL5230B is available in a SOD-123 surface mount package.
The operating temperature range is -55°C to 150°C.
The maximum forward voltage is 900mV at 10mA.
