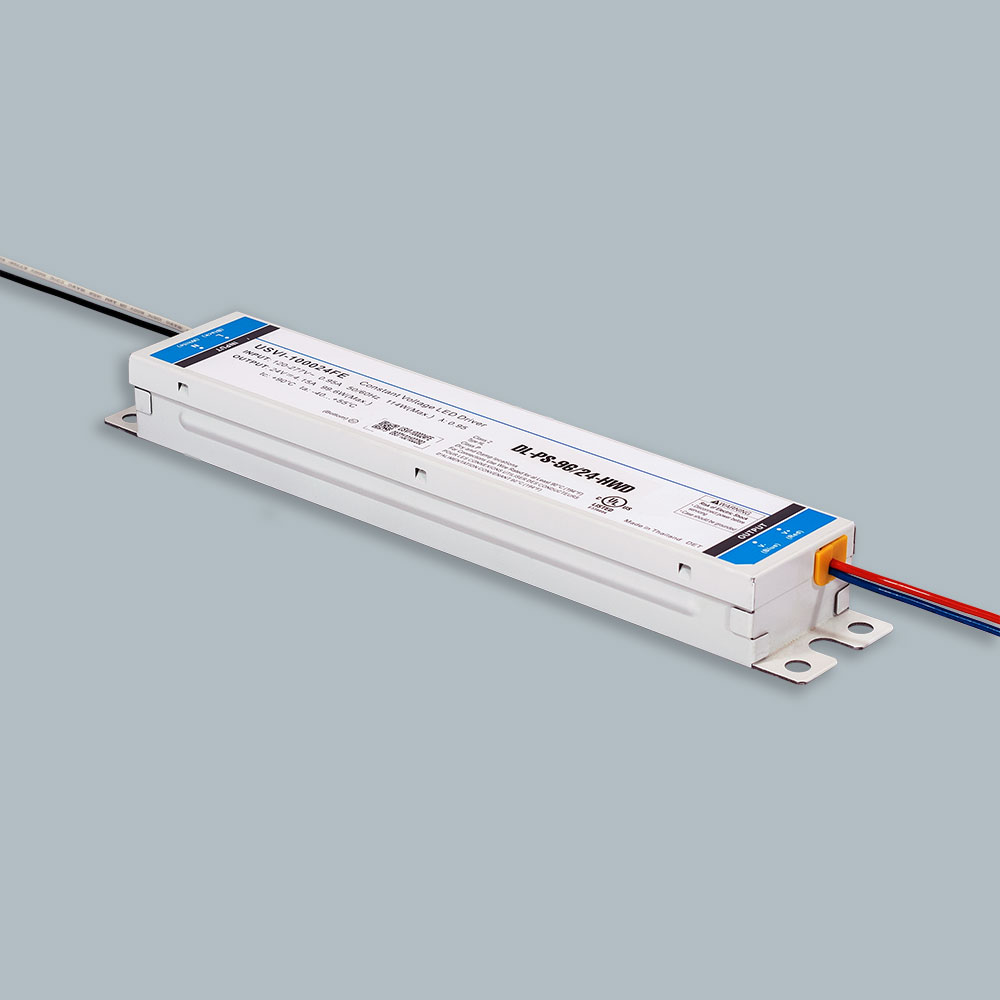

The JESCO Lighting Group DL-PS-96/24-HWD is a versatile 96-watt LED power supply designed for hardwire installation. It operates with a universal input voltage range of 120 to 277V AC, making it suitable for various electrical systems.
This power supply delivers a stable 24V DC output and features a rated load current of 4.0A. It is engineered for efficiency, achieving up to 89.5% at full load. The unit is equipped with comprehensive protection mechanisms, including short circuit, overload, over-voltage, and over-temperature protection, all with auto-recovery functionality.
Suitable for indoor dry and damp locations, the DL-PS-96/24-HWD meets safety standards such as UL8750, Class P, and Class 2 output. Its operating ambient temperature range is -40°C to +55°C, and it complies with FCC Part 15 B for EMC emissions. The dimensions are approximately 9.5 inches long by 1.68 inches wide by 1.047 inches high.
The DL-PS-96/24-HWD provides a 24V DC output with a rated power of 96W.
This power supply accepts a universal input voltage range of 120 to 277V AC.
It includes short circuit, overload, over-voltage, and over-temperature protection with auto-recovery.
The operating ambient temperature range is -40°C to +55°C.
Yes, it is suitable for indoor dry and damp locations.
The dimensions are approximately 9.5 inches long by 1.68 inches wide by 1.047 inches high.
