| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Efficiency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Protection | |
| Rated Current | |
| Voltage |

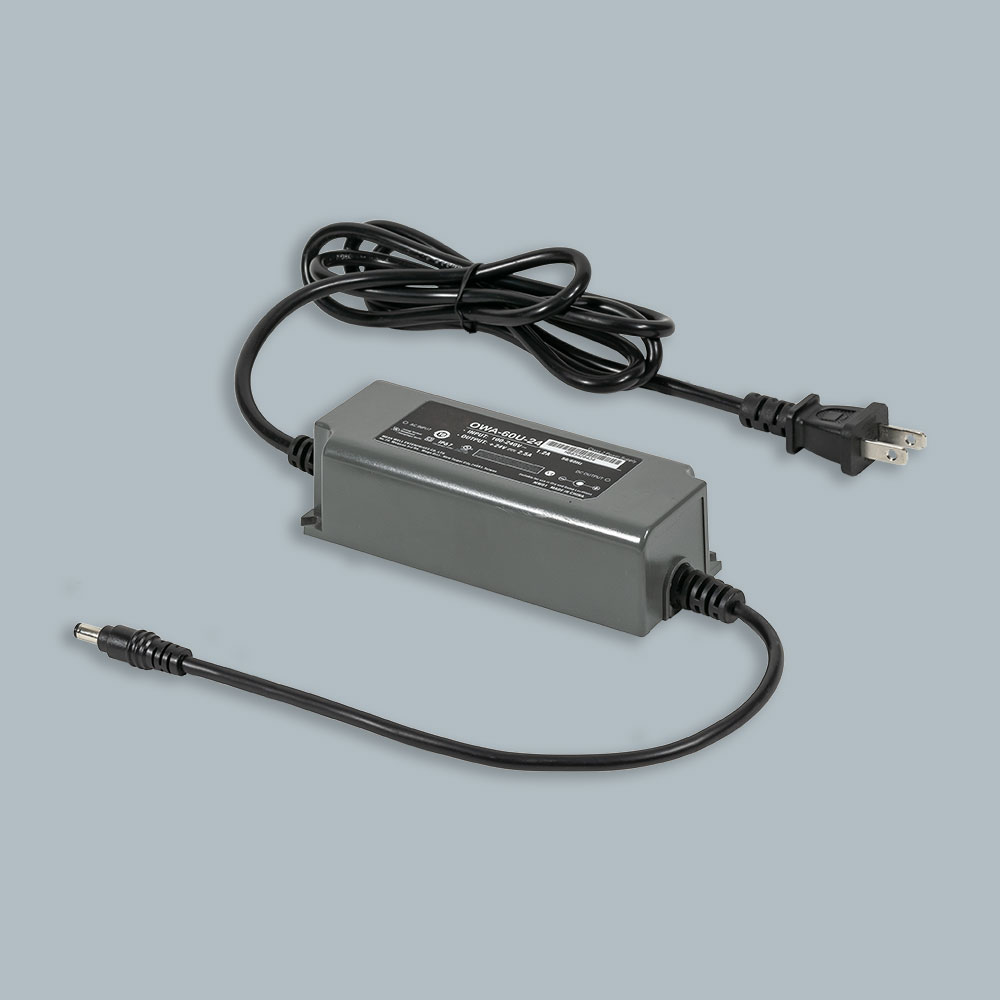

The JESCO Lighting Group DL-PS-60/24 is a versatile AC DC converter designed for LED power applications. It provides a stable 24V DC output with a maximum power rating of 60W, drawing power from a wide input voltage range of 100-240 VAC.
This model boasts an efficiency of 83.8%, contributing to reliable performance. It features a plastic housing and a plug-in mounting type, making it suitable for desktop applications. The unit includes protection against over voltage, over current, overload, and over temperature conditions, enhancing its durability and safety.
Certified by cULus and classified as Class 2, the DL-PS-60/24 meets stringent safety standards. It operates within a temperature range of 0°C to 25°C and a humidity range of 10% to 90% RH. The power supply is equipped with 18 AWG input and output wires for convenient connection.
100-240 VAC.
24 VDC output at 60W.
0-25 °C.
Over voltage, over current, overload, and over temperature.
50,000 hours at 77°F ambient.
Desktop package with plug-in mounting.
83.8%.
