| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Efficiency | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Protection | |
| Rated Current | |
| SVHC Present | |
| Voltage |

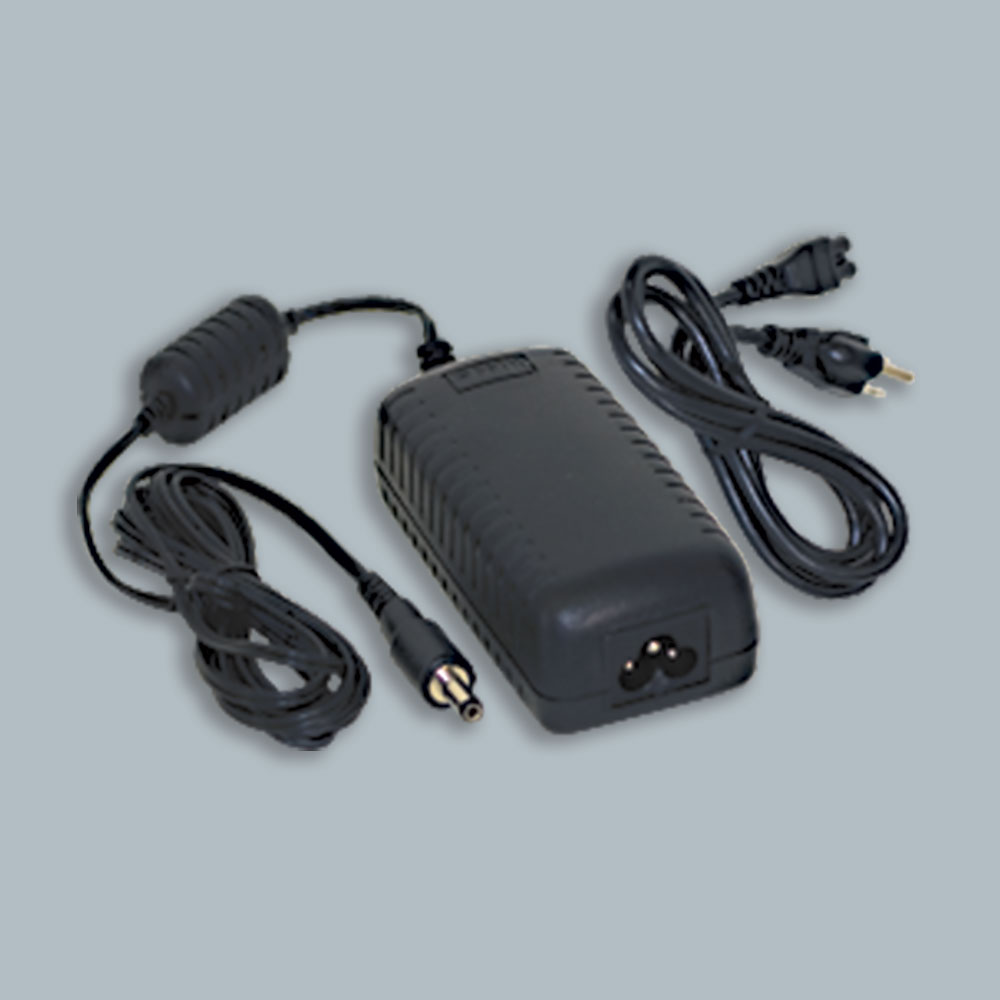

The JESCO Lighting Group DL-PS-48/24 is a 48W LED power supply providing a stable 24V DC output. It is designed for use with LED lighting applications and features a wide input voltage range of 100-240V AC.
This power supply has an efficiency rating of 83.8% and a rated current of 2A. It is protected against over voltage and over current conditions. The operating temperature range is 0°C to 35°C (32°F to 95°F), and it operates within 10% to 90% relative humidity.
The DL-PS-48/24 is housed in plastic and includes a 70-inch 18 AWG input wire and a 96-inch 20 AWG output wire. It is certified cULus listed and suitable for indoor dry environments. The MTBF is rated at 50,000 hours at 77°F ambient.
This model is part of the DL-PS-XX/24 series, offering various power and form factor options for LED lighting projects.
100-240 VAC at 50/60 Hz ±3 Hz.
24 VDC at 2 A.
0 °C to 35 °C (32 °F to 95 °F).
Over-voltage and over-current protection.
83.8%.
Desktop.
50,000 hours at 77 °F ambient.
