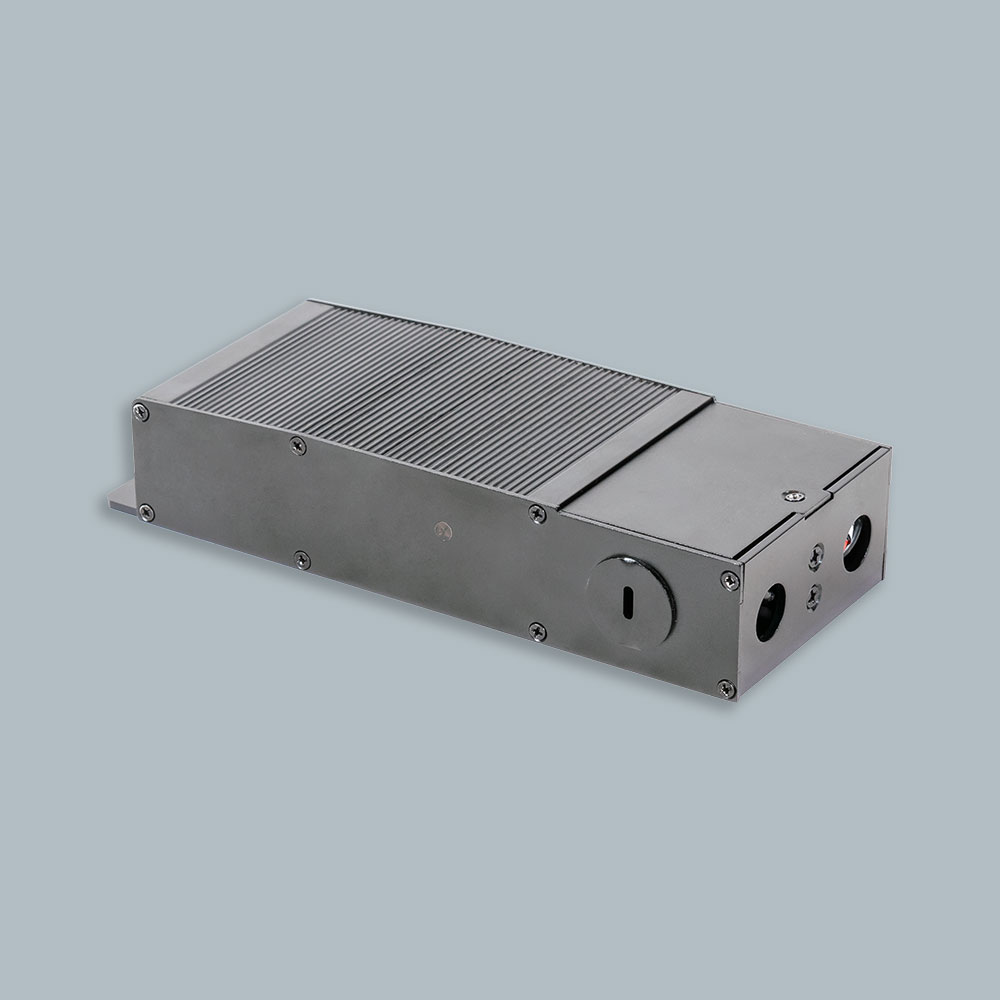

The JESCO Lighting Group DL-PS-40/24-JB-DIM-A is a 40W LED power supply with a 24V DC output, suitable for indoor applications in dry or damp environments. It operates with a universal input voltage range of 120 to 277V AC and is compatible with most TRIAC and ELV dimmers, utilizing a PWM dimming method.
This power supply features a black powder-coated aluminum enclosure and offers protection against short circuits, overloads, and over-temperature conditions. Its efficiency is rated at over 87% with a power factor greater than 0.9. The unit has an IP20 rating and operates within an ambient temperature range of -25°C to 40°C.
Certified by ETL, this Class 2 power unit is designed for reliable performance in various lighting applications. The dimensions are 7 inches in length, 2.75 inches in width, and 1.375 inches in height. It is designed for junction box mounting.
The output voltage is 24V DC.
The rated output power is 40W.
The input voltage range is 120 to 277V AC.
Yes, it is dimmable with most TRIAC and ELV dimmers.
The operating ambient temperature range is -25°C to 40°C.
The IP rating is IP20.
It is ETL Listed and Class 2 certified.
