| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Dimming | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Protection | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Weight |

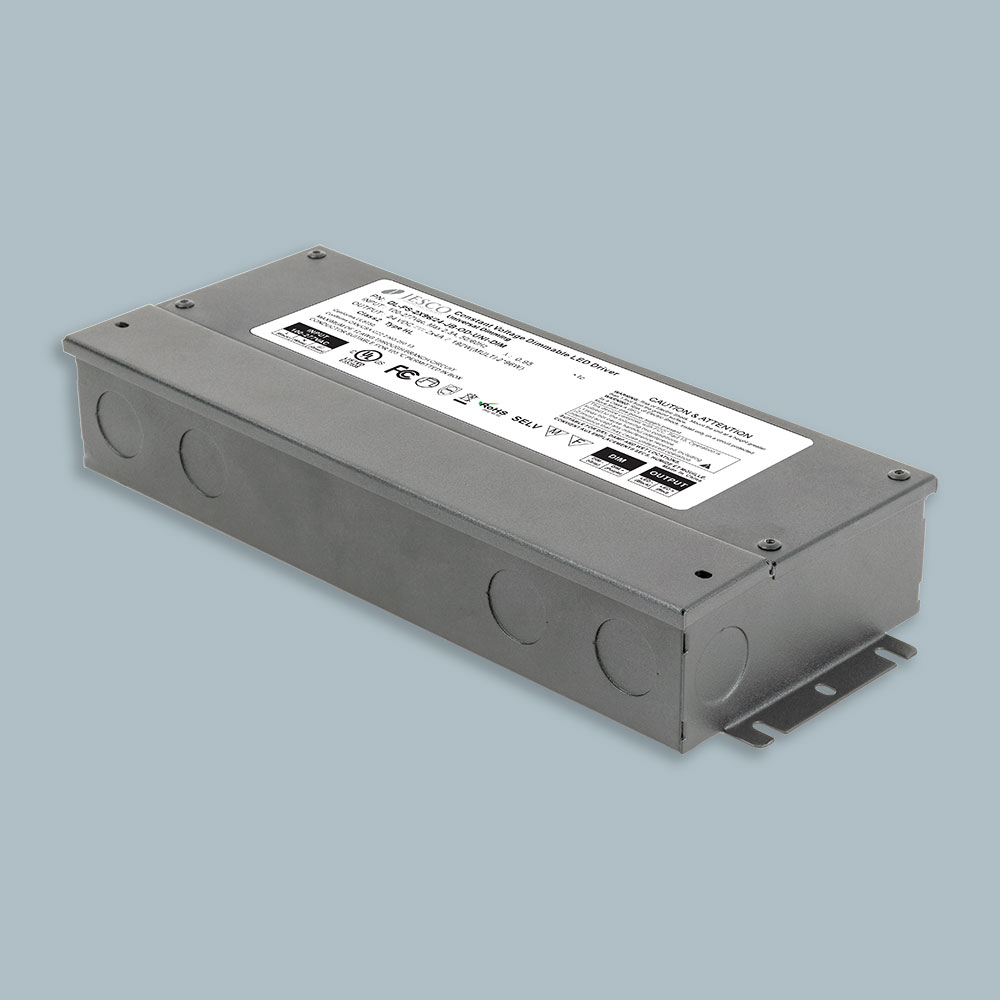

The JESCO Lighting Group DL-PS-30/24-JB-OD-UNI-DIM is a versatile 30W outdoor Class 2 universal dimming LED power supply designed for demanding environments. It operates with a universal input voltage range of 100 to 277V AC and provides a stable 24V DC output.
This power supply is compatible with Forward Phase, Reverse Phase, and 0-10V dimmers, offering smooth, flicker-free PWM dimming at an 800Hz frequency. Its robust construction is IP66 rated, making it suitable for dry, damp, and wet locations. The unit features comprehensive protection mechanisms including short circuit, over-temperature, and overloading protection, ensuring reliable operation.
Designed for free air convection cooling, the DL-PS-30/24-JB-OD-UNI-DIM includes built-in PFC function and is UL8750 Listed and Class 2 certified. It comes in a hardwire junction box enclosure with multiple knockouts for easy installation. The power supply is suitable for a wide range of applications requiring reliable and dimmable LED power in outdoor or harsh indoor settings.
The output voltage is 24V DC.
The rated output power is 30W.
The input voltage range is 100 to 277V AC.
It supports TRIAC, ELV, and 0-10V dimming.
The operating ambient temperature range is -40°C to +60°C.
The IP rating is IP66.
Yes, it is UL8750 Listed.
