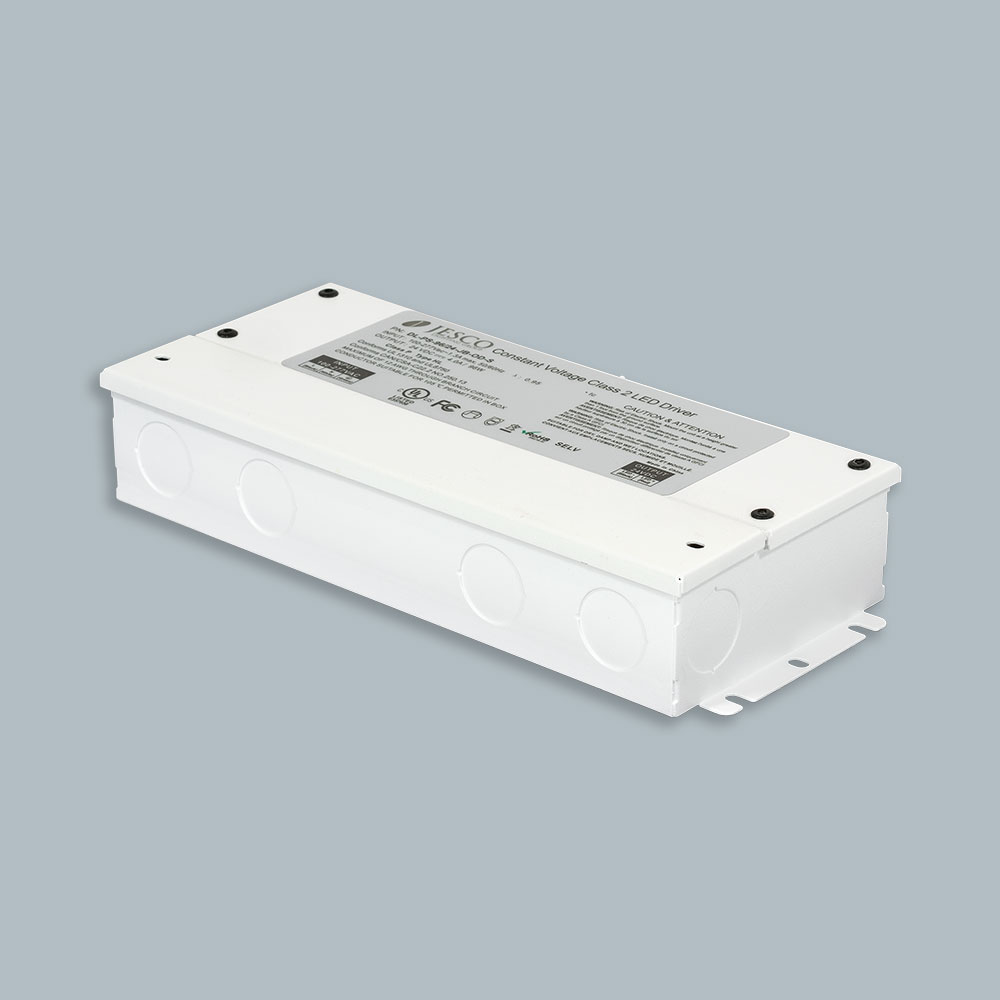

The JESCO Lighting Group DL-PS-30/24-JB-OD-S is a 30-watt, 24V DC LED power supply suitable for various lighting applications. It operates with a universal input voltage range of 100 to 277V AC and features a high power factor (typically 0.99 @ 120V AC) and efficiency (typically 82% @ 120V AC).
Designed for durability, this power supply has an IP66 rating, making it suitable for indoor and outdoor use in dry, damp, and wet locations. It is equipped with essential protection features including short circuit, over-temperature, and overload protection. The unit is housed in a metal enclosure with knockouts for easy installation.
Key specifications include an operating temperature range of -40°C to 60°C and compliance with safety standards such as UL8750 and UL1310. It is also certified as Class 2 and Class P.
The output voltage is 24V DC.
The input voltage range is 100 to 277V AC.
The rated output power is 30W.
The operating ambient temperature range is -40°C to 60°C.
Yes, it is IP66 rated and suitable for dry, damp, and wet locations.
It is certified with UL8750 and UL1310, and is a Class 2 and Class P power unit.
