| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Number of Pins | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

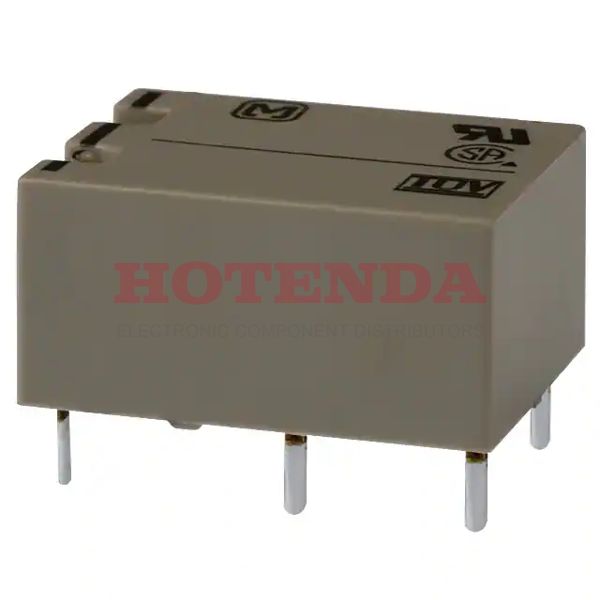

This DK1A1B-L2-9V relay from Panasonic Electric Components is designed for general purpose applications. It operates with a coil voltage of 9VDC and handles a contact current of up to 8A. The contact form is 1 Form A, 1 Form B (DPST-NO/NC), with a contact material of Silver Nickel.
The relay is suitable for switching voltages up to 250VAC or 125VDC. It has an operate time of 10ms and a release time of 8ms. The operating temperature range is -40°C to 65°C. The mounting type is through hole, with PC pin termination.
Key electrical specifications include a coil current of 22.2 mA and a must-operate voltage of 6.3 VDC. The relay is sealed and features a latching, dual coil type. Its physical dimensions are 20mm x 15mm x 10mm, with a body length/diameter of 20mm and breadth of 15mm. The part status is active.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 9VDC.
The contact current rating is 8A.
It has a 1 Form A, 1 Form B contact form.
The operating temperature range is -40°C to 65°C.
Yes, it is RoHS3 compliant.
