| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

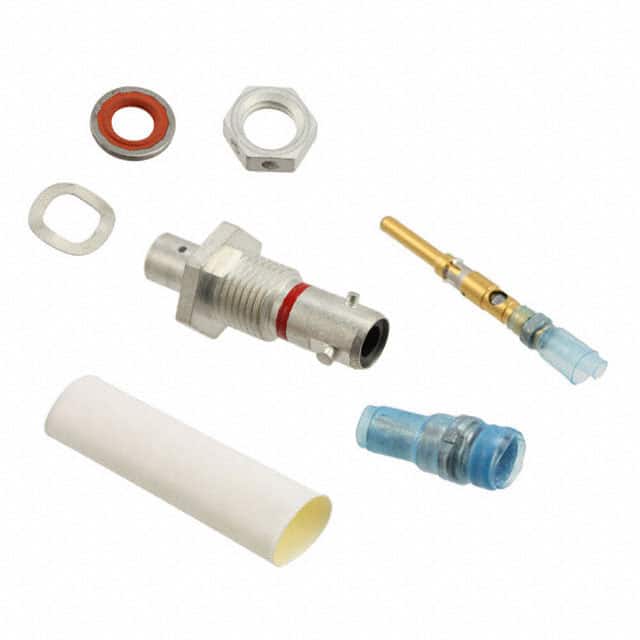

The DK-621-0434-1P is a panel mount triaxial connector from TE Connectivity. It features a male pin contact with solder termination for the center contact and the shield. The connector uses a bayonet lock for secure mating and is mounted via a bulkhead front side nut. It has a single port configuration and is RoHS3 compliant with an MSL rating of 1 (unlimited).
This connector is suitable for applications requiring triaxial connections where reliable shielding is important. The solder terminations provide a permanent and robust connection for both signal and shield paths.
The connector is panel mount with a bulkhead front side nut.
The connector style is triaxial.
The contact termination is solder.
This connector has 1 port.
The fastening type is bayonet lock.
The shield termination is solder.
Yes, it is RoHS3 compliant according to the existing database.
