| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Embedded | |
| Interface | |
| MCU Flash Size | |
| On-Board Debugger | |
| Sensing Range | |
| Sensor Type | |
| Software / GUI Included | |
| Supplied Contents | |
| Utilized IC | |
| Voltage |

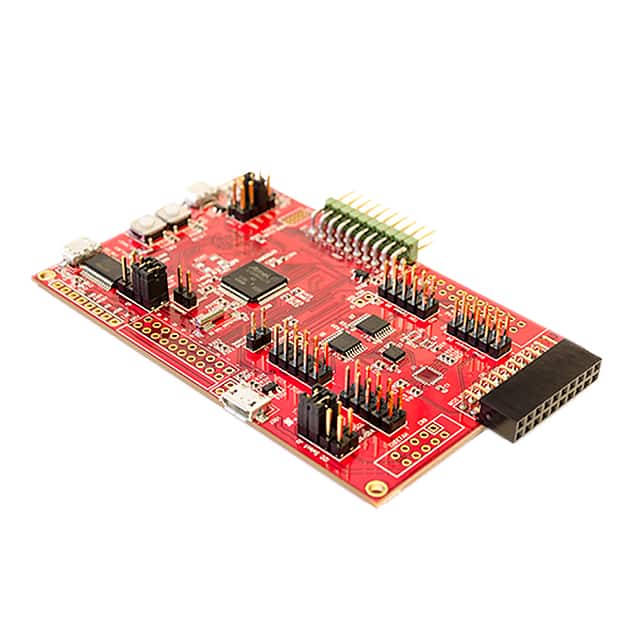

The DK-20948 is a comprehensive development platform for the InvenSense ICM-20948, a high-performance 9-axis motion sensor combining a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer, and a Digital Motion Processor. The board is built around the Microchip G55 MCU with 512KB Flash memory and includes an on-board Embedded Debugger, eliminating the need for external programming tools.
The DK-20948 supports I²C and SPI interfaces for communication with the sensor and can be powered directly via USB at 5V. It comes with essential software: the InvenSense MotionLink GUI for sensor data visualization and embedded Motion Drivers (eMD) providing APIs for sensor configuration such as full-scale range, output data rate, and low-power modes.
Key features include sensor fusion, accelerometer/gyroscope/compass calibration, Android functions (rotation vector, game rotation vector, gravity, linear acceleration), pedometer functions (step detection and count), and gesture recognition (pickup, tilt, bring to see). The sensing range is selectable: accelerometer ±2g/±4g/±8g/±16g, gyroscope ±250/±500/±1000/±2000°/sec, and magnetometer ±4900µT.
The DK-20948 is RoHS3 compliant according to existing database records.
The board includes a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer.
The board operates at 5V supplied via USB.
It supports I²C and SPI interfaces.
It uses a Microchip G55 32-bit MCU with 512KB flash memory.
InvenSense MotionLink GUI and embedded Motion Drivers (eMD) for ICM-20948.
The accelerometer range is selectable: ±2g, ±4g, ±8g, or ±16g.
