| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accelerometer Range | |
| Android Functions | |
| Calibration | |
| Embedded | |
| Embedded MCU | |
| Flash Size | |
| Gyroscope Range | |
| Interface | |
| MCU | |
| On-Board Debugger | |
| Package Quantity | |
| Platform | |
| Power Source | |
| Sensing Range | |
| Sensor Fusion | |
| Sensor Type | |
| Supplied Contents | |
| Supply Voltage | |
| USB Connectors | |
| Utilized IC | |
| Voltage |

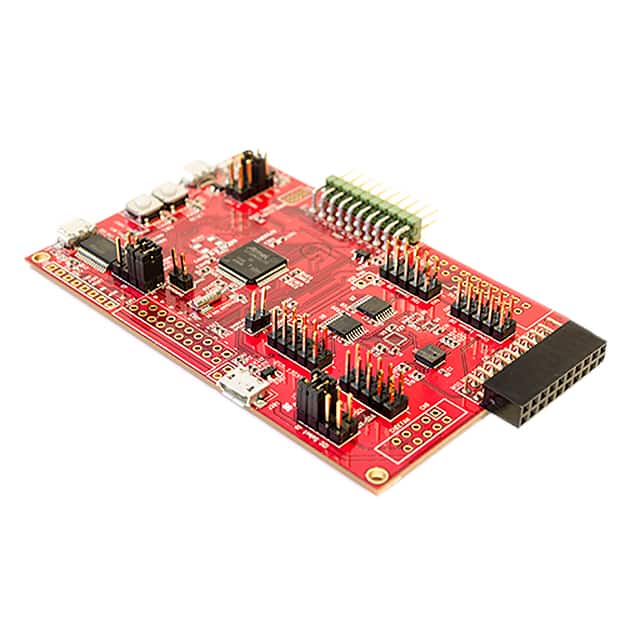

The DK-20789 is a development kit for the ICM-20789 7-axis motion sensor from InvenSense. It combines a 3-axis gyroscope, 3-axis accelerometer, and a pressure sensor. The platform is built around a Microchip G55 MCU with 512KB flash memory and includes an on-board embedded debugger, eliminating the need for external tools. The kit supports I²C and SPI interfaces for host communication and is powered via USB.
Key features include sensor fusion, accelerometer and gyroscope calibration, and support for Android functions such as Game Rotation Vector, Gravity, and Linear Acceleration. The ICM-20789 offers selectable full-scale ranges: accelerometer ±2g, ±4g, ±8g, ±16g; gyroscope ±250°/s, ±500°/s, ±1000°/s, ±2000°/s. The development kit comes with InvenSense MotionLink GUI software and embedded Motion Drivers for rapid evaluation.
5V via USB.
RoHS3 Compliant.
Accelerometer, gyroscope, pressure sensor.
I²C and SPI.
Microchip G55 with 512KB flash.
±2g, ±4g, ±8g, ±16g.
±250°/s, ±500°/s, ±1000°/s, ±2000°/s.
