| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Embedded | |
| Interface | |
| Sensing Range | |
| Sensor Type | |
| Supplied Contents | |
| Utilized IC | |
| Voltage |

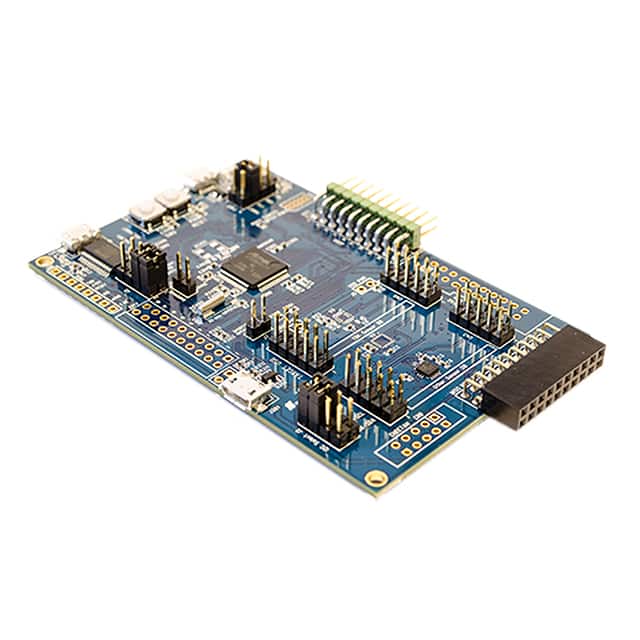

The DK-20602 is a comprehensive development platform for the ICM-20602, a high-performance 6-axis motion sensor that integrates a 3-axis gyroscope and a 3-axis accelerometer. The platform is designed around the Microchip G55 MCU with 512KB Flash and includes an on-board embedded debugger for programming and debugging without external tools.
The sensor offers selectable full-scale ranges: ±2g, ±4g, ±8g, ±16g for accelerometer and ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec for gyroscope. Communication interfaces include I²C and SPI. The board is powered via USB at 5V.
Development software includes InvenSense MotionLink GUI tool and embedded Motion Drivers (eMD) for configuring sensor parameters such as output data rate and low-power/low-noise modes. The platform supports sensor fusion, accelerometer and gyroscope calibration, and Android sensor functions like Game Rotation Vector, Gravity, and Linear Acceleration.
Yes, it is RoHS3 compliant.
The board operates at 5V supplied via USB.
The ICM-20602 6-axis motion sensor.
I²C and SPI.
Accelerometer: ±2g, ±4g, ±8g, ±16g. Gyroscope: ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec.
A Microchip G55 32-bit MCU with 512KB Flash.
MSL 1 (Unlimited).
