| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Embedded | |
| Interface | |
| Kit Contents | |
| Sensing Range | |
| Sensitivity | |
| Sensor Type | |
| Supplied Contents | |
| Supply Voltage | |
| Utilized IC | |
| Voltage |

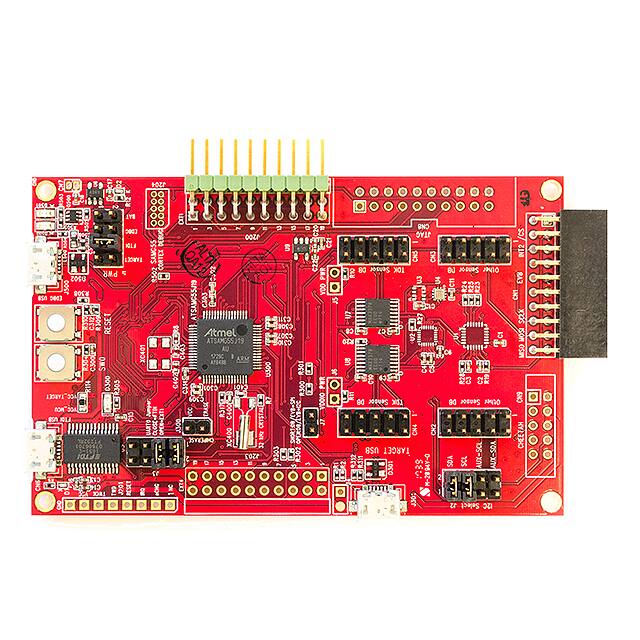

The DK-10100 is a comprehensive development platform from InvenSense for the ICP-10100 high accuracy, low power barometric pressure and temperature sensor. Part of the SmartMotion platform, the board is designed around a Microchip G55 32-bit MCU with 512KB flash memory. It includes an on-board embedded debugger for programming and debugging without external tools, and supports USB and I²C interfaces for host connectivity and sensor data logging. The board is powered through the USB connection at 5V. The development kit includes InvenSense MotionLink GUI software and embedded Motion Drivers (eMD) for configuring sensor parameters like raw data, calibrated temperature (in °C), and pressure (in Pa). The DK-10100 enables rapid evaluation and prototyping of ICP-10100-based solutions. The sensor itself offers a pressure range of 30 to 110 kPa and temperature range of -40 to 85°C, with sensitivity of ±1.5 hPa and ±0.4°C.
The DK-10100 operates from a 5V supply via USB.
Yes, the DK-10100 is RoHS3 compliant.
The DK-10100 evaluates the ICP-10100 barometric pressure and temperature sensor.
The DK-10100 supports I²C and USB interfaces.
The sensor has ±1.5 hPa pressure accuracy and ±0.4°C temperature accuracy.
The sensing range is 30 to 110 kPa for pressure and -40 to 85°C for temperature.
Yes, it includes a 32-bit MCU (Microchip G55) for processing.
