| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
141 pcs
|
141 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Features | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

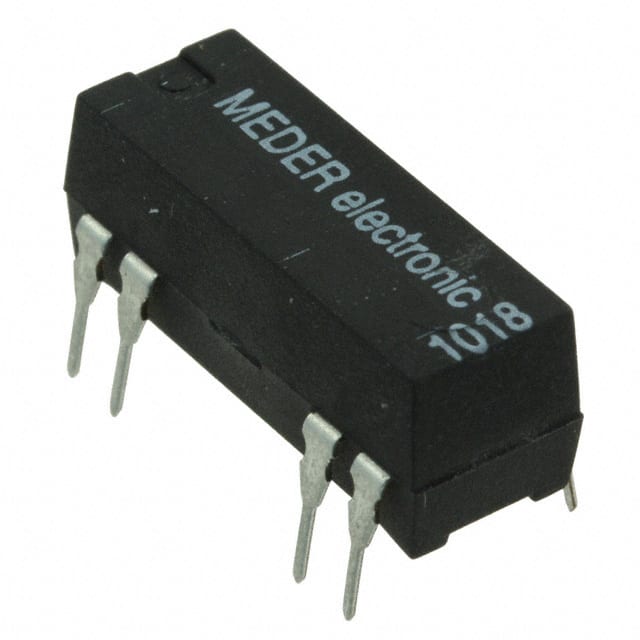

This Standex-Meder Electronics DIP05-1A72-12D is a reed relay designed for various switching applications. It operates with a 5VDC coil voltage and a coil current of 10mA. The relay features a Single Pole Single Throw Normally Open (SPST-NO) contact form, capable of switching up to 1A at a maximum of 200VAC or 200VDC.
Key electrical specifications include a must-operate voltage of 3.5 VDC and a must-release voltage of 0.75 VDC. The operate time is 0.5ms, and the release time is 0.1ms. The operating temperature range for this component is -20°C to 70°C.
Designed for easy integration, the DIP05-1A72-12D utilizes a Through Hole mounting type and PC Pin termination style. It also includes a diode feature. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the DIP05-1A72-12D reed relay is 5VDC.
The contact rating for the DIP05-1A72-12D reed relay is 1A.
The contact form is SPST-NO (1 Form A).
The operating temperature range is -20°C to 70°C.
This relay is designed for Through Hole mounting.
