| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage (Nominal) | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

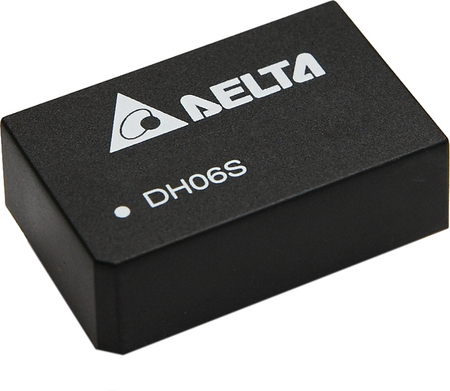

The DH06S2405A is an isolated DC DC converter module from Delta Electronics, designed for board-mount applications. It delivers a single 5V output at 1.2A, providing 6W of power with an efficiency of 80%. The module accepts a nominal 18V input voltage and includes protection features such as overcurrent protection (OCP), short circuit protection (SCP), and under-voltage lockout (UVLO).
This converter is suitable for medical applications, operating over a wide temperature range of -40°C to 85°C. It comes in a 24-DIP module with 8 leads and through-hole mounting, with dimensions of 31.8mm x 20.3mm x 10.2mm. The device is RoHS3 compliant and has an MSL rating of 1 (unlimited).
With its isolated design, the DH06S2405A provides galvanic isolation between input and output, making it ideal for applications requiring safety isolation. The compact DIP package allows for easy integration into PCB designs.
5V.
Nominal 18V.
1.2A.
-40°C to 85°C.
24-DIP Module, 8 Leads, through hole.
Yes, RoHS3 compliant.
Overcurrent protection (OCP), short circuit protection (SCP), and under-voltage lockout (UVLO).
