| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,947 pcs
|
2947 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,947 pcs
|
2947 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Current | |
| Driven Configuration | |
| Gate Type | |
| Halogen Free | |
| Input Type | |
| Logic Voltage | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Propagation Delay | |
| Rise | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The Diodes Incorporated DGD0216WT-7 is a high-speed, low-side gate driver capable of delivering 1.9A of peak current. It is designed to efficiently drive N-channel MOSFETs and IGBTs.
This device features a wide supply voltage operating range from 4.5V to 18V and offers both inverting and non-inverting input configurations. With fast propagation delays of 35ns typical and rise/fall times of 15ns typical, it enables compact power switching designs. The logic inputs are compatible with 3.3V levels, facilitating easy integration with MCUs.

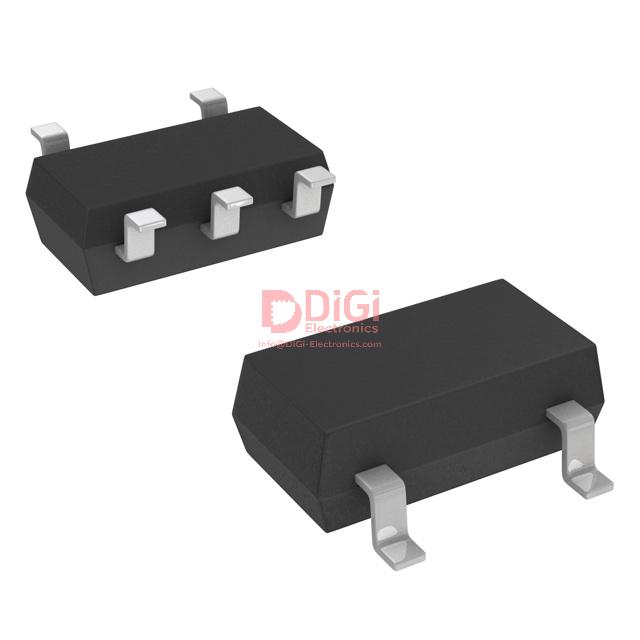

The DGD0216WT-7 is housed in a compact TSOT-25 package, suitable for surface mount applications. It operates across an extended temperature range of -40°C to +125°C, making it suitable for demanding environments. The device is RoHS3 compliant and halogen-free.
Applications for this gate driver include DC-DC converters, line drivers, motor controls, and switch-mode power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 18V.
TSOT-25 surface mount package.
-40°C to +125°C.
Yes, it is totally lead-free and halogen and antimony free.
1.9A source and 1.8A sink.
IGBT and N-Channel MOSFET.
35ns.
