| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,512 pcs
|
4512 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bandwidth | |
| Crosstalk | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |
The Vishay Dale DG538ADN is a versatile analog switch IC designed for wideband signal routing and multiplexing applications. It features a bandwidth of 500 MHz and very low crosstalk of -97 dB at 5 MHz, making it suitable for demanding signal paths.
This device supports single-ended or differential operation and includes on-board TTL-compatible latches with readback for simplified interfacing. The low on-resistance and low capacitance characteristics are ideal for video and audio signal routing. An optional negative supply pin allows for the handling of bipolar signals without DC biasing.
The DG538ADN is built on a D/CMOS process, combining n-channel DMOS switching FETs with low-power CMOS control logic. The low-capacitance DMOS FETs are configured in a "T" configuration to achieve high off-isolation levels. Crosstalk is minimized by including a ground line between adjacent signal paths, and an epitaxial layer prevents latch-up.

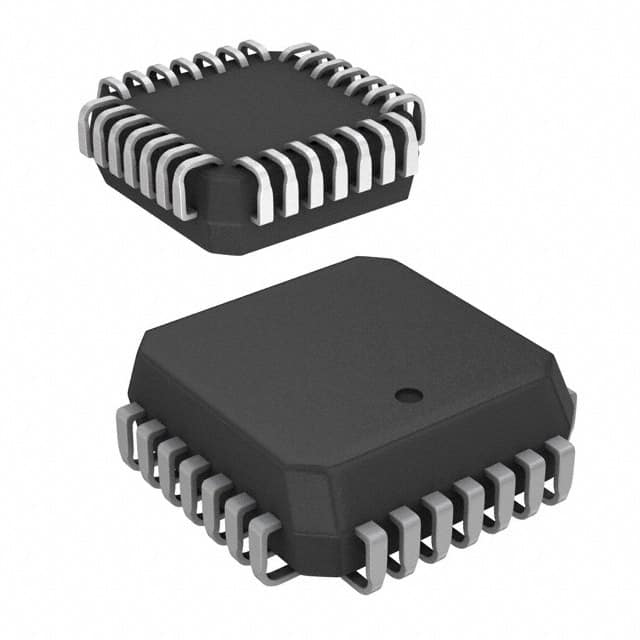

Packaged in a 28-PLCC (J-Lead) format, the DG538ADN is designed for surface mounting. It operates within a temperature range of -40°C to 85°C (TA) and requires a voltage supply between 10V and 21V.
The DG538ADN analog switch has a bandwidth of 500 MHz.
The DG538ADN exhibits very low crosstalk of -97 dB at 5 MHz.
The typical on-resistance for the DG538ADN is 45 Ohm.
The DG538ADN operates in a temperature range of -40°C to 85°C (TA).
The DG538ADN is available in a 28-LCC (J-Lead) package, with the supplier device package being 28-PLCC (11.51x11.51).
The DG538ADN is suitable for applications such as Ultrasound and Video signal routing.
