| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Package / Case |
The DG535DJ from Vishay Siliconix is an analog switch designed for applications requiring high-performance signal routing. This component features a 16:1 multiplexer/demultiplexer circuit, enabling efficient selection of one of sixteen input channels.
With a -3dB bandwidth of 500MHz, the DG535DJ is suitable for video and other high-frequency signal processing tasks. It offers a low on-state resistance of 90 Ohms maximum, ensuring minimal signal attenuation. The device operates with a single supply voltage ranging from 10V to 16.5V.

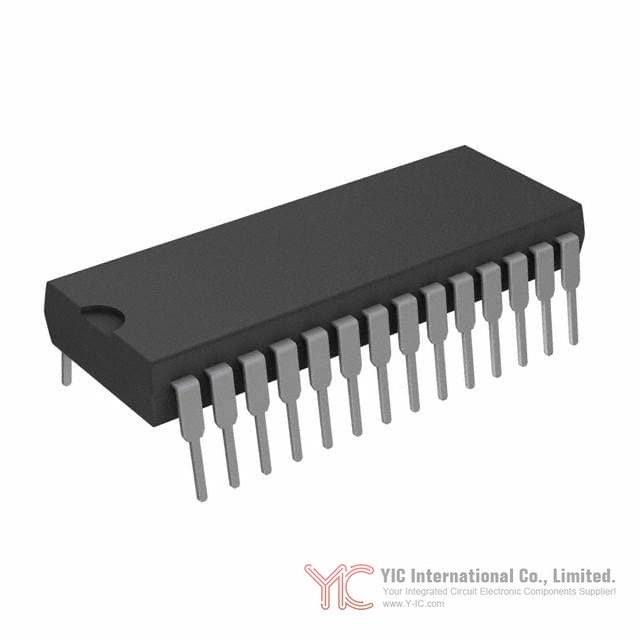

Packaged in a standard 28-pin DIP (Dual In-line Package) format with through-hole mounting, the DG535DJ is designed for ease of integration into various electronic assemblies. Its operating temperature range is -40°C to 85°C, making it suitable for a wide array of environmental conditions.
This analog switch is part of Vishay Siliconix's line of interface components, providing reliable switching solutions for demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DG535DJ operates with a single supply voltage ranging from 10V to 16.5V.
The maximum on-state resistance for the DG535DJ is 90 Ohms.
The DG535DJ has a -3dB bandwidth of 500MHz.
The DG535DJ is available in a 28-DIP (0.600", 15.24mm) package.
The DG535DJ is designed for through-hole mounting.
