| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Bandwidth | |
| Crosstalk | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Switch Circuit | |
| Tape & Reel | |
| Voltage |
The Vishay Dale DG534ADN is a digitally selectable 2-channel multiplexer, part of the DG534A/538A series. It is built on a D/CMOS process combining n-channel DMOS switching FETs with low-power CMOS control logic, drivers, and latches.
Key electrical specifications include a wide bandwidth of 500 MHz, very low crosstalk of -97 dB at 5 MHz, and low on-resistance of 45 Ohms. The device supports single-ended or differential operation and allows bipolar signal swings. It operates over a voltage range of 10V to 21V and a temperature range of -40°C to 85°C.
This multiplexer is ideal for wideband data multiplexing and video and audio signal routing in applications such as video switchers, ATE systems, infrared imaging, and ultrasound imaging. The on-chip TTL-compatible address decoding logic and latches simplify interface to a microprocessor data bus.

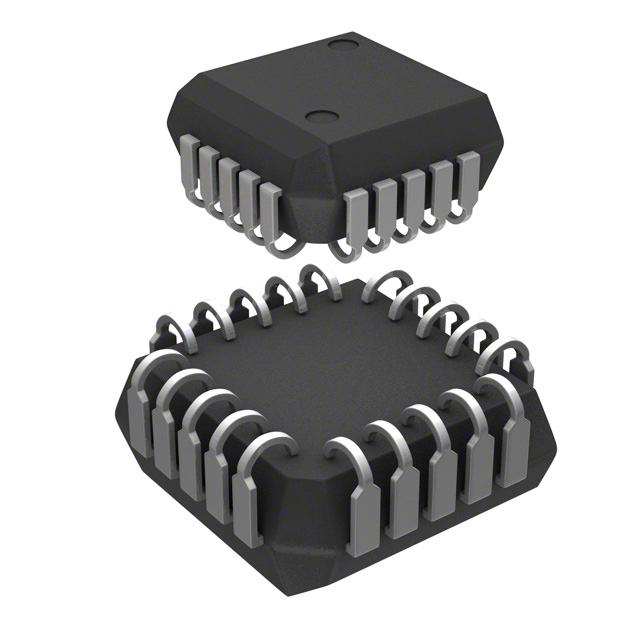

The DG534ADN is supplied in a 20-PLCC (9x9) surface mount package, also referred to as a 20-LCC (J-Lead) package.
The bandwidth of the DG534ADN is 500 MHz.
The on-resistance of the DG534ADN is 45 Ohms.
The DG534ADN operates from -40°C to 85°C.
The DG534ADN is available in a 20-PLCC (9x9) package.
The DG534ADN is RoHS3 Compliant.
The MSL for the DG534ADN is 1 Unlimited.
