The DG508ADY is a single 8-channel (1-of-8) monolithic CMOS analog multiplexer manufactured by SIL. It is designed for symmetrical, bidirectional operation and guarantees break-before-make switching. This device is latchup-proof, ensuring reliability even if power supplies are turned off with input signals present.
Key electrical specifications include operation from ±4.5V to ±18V supplies, TTL and CMOS compatible logic and enable inputs, and a power consumption of 696 mW. The operating temperature range is -40°C to 85°C.

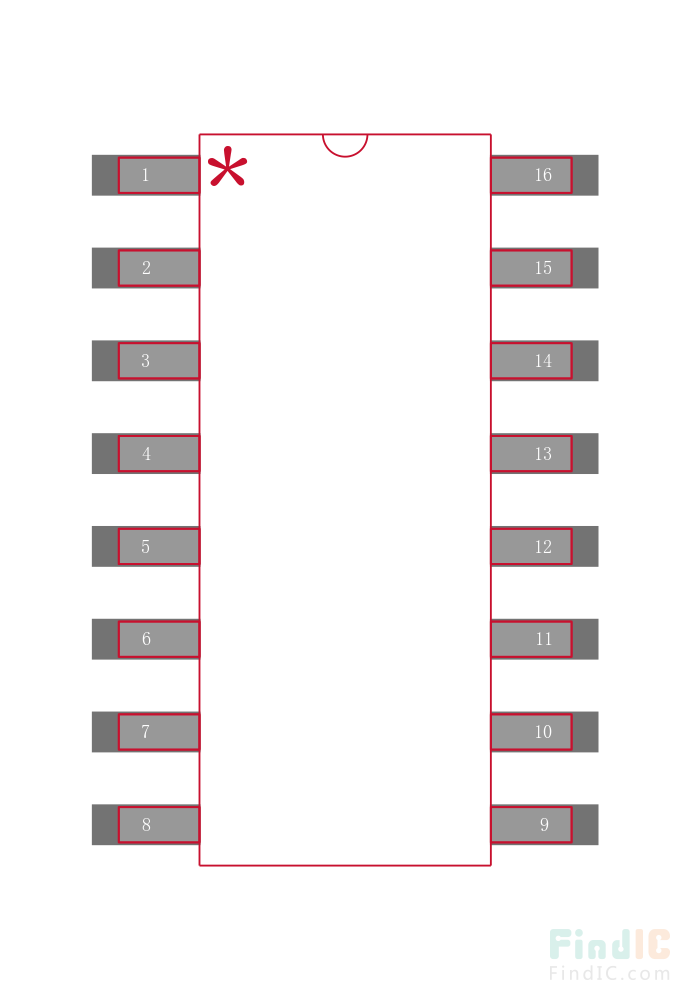

The DG508ADY comes in a 16-pin SOIC-16 surface mount package. Its dimensions are 10 mm in length, 4 mm in width, and 1.5 mm in height. The component is suitable for various analog signal routing applications where reliable switching and a wide operating voltage range are required.
This multiplexer is RoHS compliant and lead-free. It is packaged in tubes or bulk.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
±4.5V to ±18V.
SOIC-16.
-40°C to 85°C.
Yes.
TTL and CMOS.
Yes.
Surface mount.
