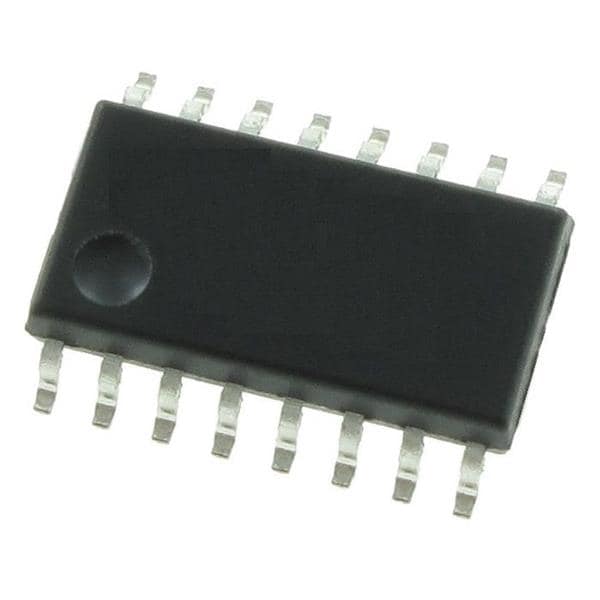

The DG412CY+T from Analog Devices is an improved, quad, single-pole/single-throw (SPST) analog switch. It offers low on-resistance matching between channels (3 Ω max) and guaranteed on-resistance flatness over the signal range (Δ4Ω max). This device conducts equally well in either direction and guarantees low charge injection (5pC max) and low power consumption (35µW max).
Key electrical specifications include a maximum on-resistance of 45 Ohms and switching times of 175ns maximum for turn-on and 145ns maximum for turn-off. The DG412CY+T supports dual supply operation from ±4.5V to ±20V, or single supply from +10V to +30V. It also features an ESD tolerance of 2000V minimum per Method 3015.7.
Designed for applications such as sample-and-hold circuits, communication systems, test equipment, and audio signal routing, this analog switch is fabricated with a 44V silicon-gate process. It is available in a 16-SOIC surface mount package, making it suitable for various electronic designs.
The device operates within a temperature range of 0°C to 70°C. It is RoHS3 compliant and has an MSL rating of 1.
The maximum on-resistance for the DG412CY+T is 45 Ohms.
The maximum switching times for the DG412CY+T are 175ns for turn-on and 145ns for turn-off.
The DG412CY+T can operate with single supplies from +10V to +30V or dual supplies from +/-4.5V to +/-20V.
The DG412CY+T operates in a temperature range of 0°C to 70°C.
The DG412CY+T is available in a 16-SOIC package.
