| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,500 pcs
|
6500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Tape & Reel | |
| Voltage |

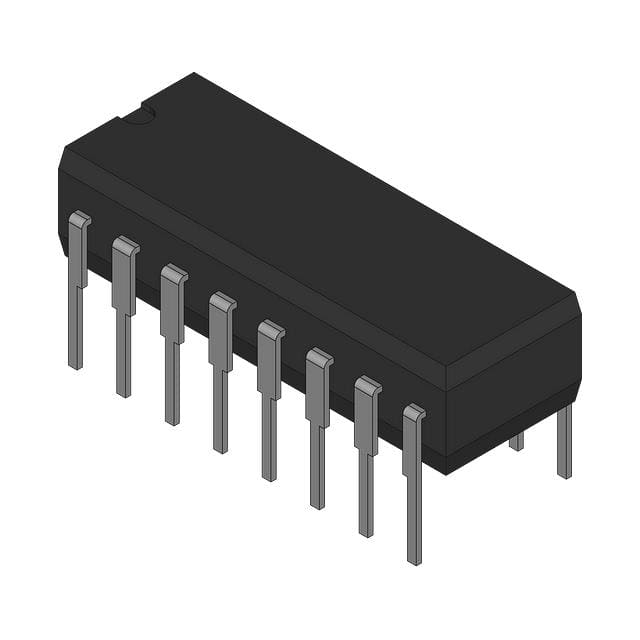

The Intersil DG308ACJ is an analog switch integrated circuit designed for switching applications. It features a Single Pole Single Throw Normally Open (SPST-NO) configuration, with four independent circuits within a single package.
Key electrical characteristics include a voltage rating of ±15V, a switch time of 130ns turn-on and 9ns turn-off, and low charge injection of -10pC. The device also specifies channel capacitance values of 8pF for source and 11pF for drain when off.
This component is designed for operation within a temperature range of 0°C to 70°C. It is mounted using a through-hole method and comes in a 16-PDIP package, specifically a 16-DIP (0.300", 7.62mm) format.
The DG308ACJ is suitable for various signal routing and switching tasks in electronic designs where a reliable analog switch is required.
The operating temperature range is 0°C to 70°C.
The DG308ACJ is in a 16-DIP (0.300", 7.62mm) package.
The DG308ACJ has 4 circuits.
The switch configuration is SPST - NO.
The voltage rating is ±15V.
The switch times are 130ns for turn-on and 9ns for turn-off.
