| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Voltage |

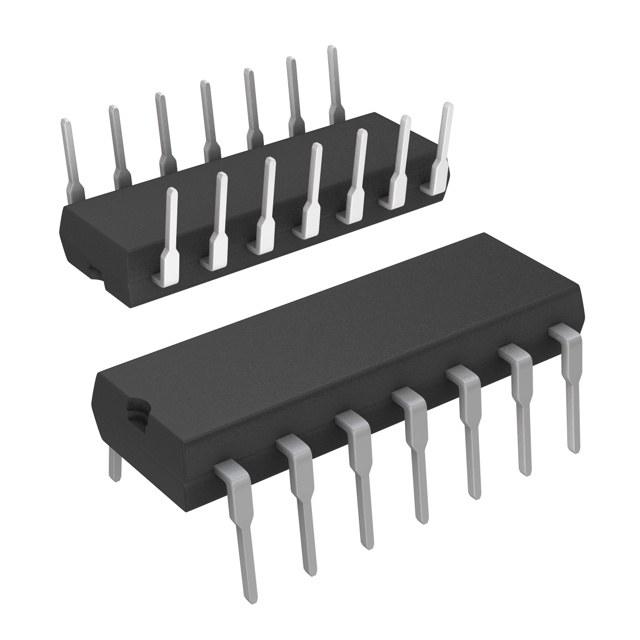

The Vishay Dale DG307AAK/883 is a dual Single Pole Double Throw (SPDT) analog switch IC. It is designed for applications requiring efficient signal routing and switching.
Key electrical characteristics include a typical on-resistance of 50 Ohms and a fast switching time of 250ns (Ton) and 150ns (Toff). The device operates with dual supply voltages up to ±15V. It also features low leakage current of 1nA and charge injection of 30pC.
This analog switch is housed in a 14-CERDIP package and is designed for through-hole mounting, making it suitable for various PCB assembly processes. The operating temperature range is -55°C to 125°C (TA).
The DG307AAK/883 is part of a series of monolithic CMOS switches suitable for communications, instrumentation, and process control applications. Its design ensures break-before-make switching action and prevents latch-up.
The typical on-resistance is 50 Ohms.
The device operates at ±15V.
The switching time is 250ns for turn-on and 150ns for turn-off.
The operating temperature range is -55°C to 125°C (TA).
The DG307AAK/883 is supplied in a 14-CERDIP package for through-hole mounting.
