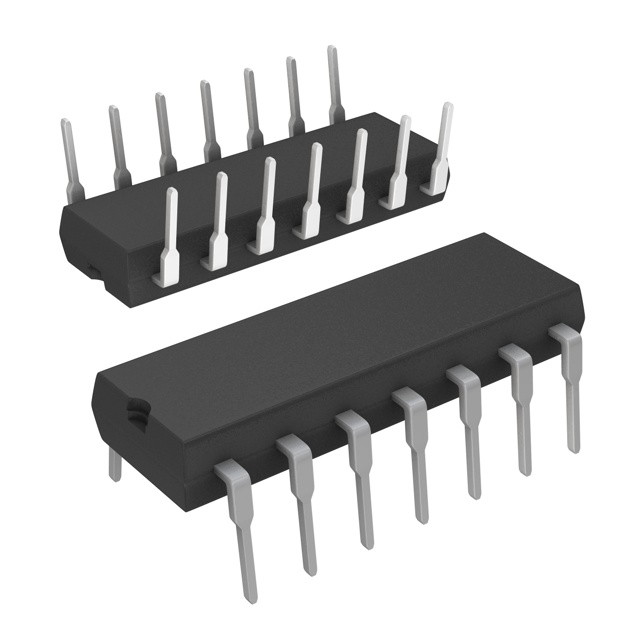

DG303ABK The DG303ABK is an analog switch from Analog Devices / Maxim Integrated, featuring SPDT circuitry and 50 Ohm on-resistance. It is designed for through-hole mounting.
Mfr Part #:

DG303ABK

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The DG303ABK is an analog switch from Analog Devices / Maxim Integrated, featuring SPDT circuitry and 50 Ohm on-resistance. It is designed for through-hole mounting.
✓ Total Stock: 3,600 pcs

DG303ABK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DG303ABK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Lead Spacing
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Storage Temperature
Supplier Device Package
Supplier Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Tape & Reel
Voltage
View Similar Products (0)

DG303ABK Description

Short technical summary and product information.

The DG303ABK is a dual SPDT analog switch from Analog Devices / Maxim Integrated, designed for applications requiring efficient signal routing. It offers an on-resistance of 50 Ohms and operates within a voltage range of ±5V to 18V.



This component features a switch time of 300ns (Ton) and 250ns (Toff), with a crosstalk of -74dB at 500kHz. The charge injection is rated at 12pC, and channel capacitance is 14pF. It is suitable for operation in temperatures ranging from -25°C to 85°C.



The DG303ABK is packaged in a 14-CDIP format and is designed for through-hole mounting, making it adaptable for various circuit board designs. Its specifications make it a suitable choice for signal switching in moderate frequency applications.

DG303ABK Quick Information

Product Type: Analog Switch
Canonical Name: DG303ABK Analog Switches
Subcategory: Multiplexer/Demultiplexer

DG303ABK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DG303ABK Features

  • Dual SPDT analog switch.
  • Low 50 Ohm on-resistance.
  • Wide ±5V to 18V operating voltage.
  • Through-hole 14-CDIP package.
  • Operates -25°C to 85°C.

DG303ABK Applications

  • Suitable for switching RF signals in communication systems.
  • Used in multiplexing applications for audio and video signals.
  • Ideal for controlling signal paths in instrumentation equipment.
  • Applicable in industrial automation for signal routing.
  • Employed in test and measurement equipment for signal switching.

DG303ABK FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the DG303ABK?

The operating temperature range for the DG303ABK is -25°C to 85°C (TA).

What is the on-resistance of the DG303ABK analog switch?

The DG303ABK has an on-resistance of 50 Ohms.

What is the operating voltage range for the DG303ABK?

The DG303ABK operates within a voltage range of ±5V to 18V.

What package type is the DG303ABK supplied in?

The DG303ABK is supplied in a 14-CDIP package.

How is the DG303ABK mounted?

The DG303ABK is designed for through-hole mounting.
