| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Charge Injection | |
| Crosstalk | |
| Operating Temperature | |
| Power Consumption |
The DG301AAK is a monolithic CMOS analog switch designed for precision applications. It offers a full rail-to-rail analog signal range of 15V and features low on-resistance, typically 30 Ohms, ensuring minimal signal error.
With fast switching speeds, the DG301AAK has a typical ON time of 150 ns. It is designed for break-before-make switching action and is compatible with CMOS and quasi-TTL logic levels. The device can operate from a single supply by connecting the V- rail to 0V.
This analog switch is latch-up proof and designed to block up to 30V peak-to-peak when off. It is ideal for applications requiring low leakage switching combined with low power consumption, such as low-level switching circuits, programmable gain amplifiers, and portable or battery-powered systems.

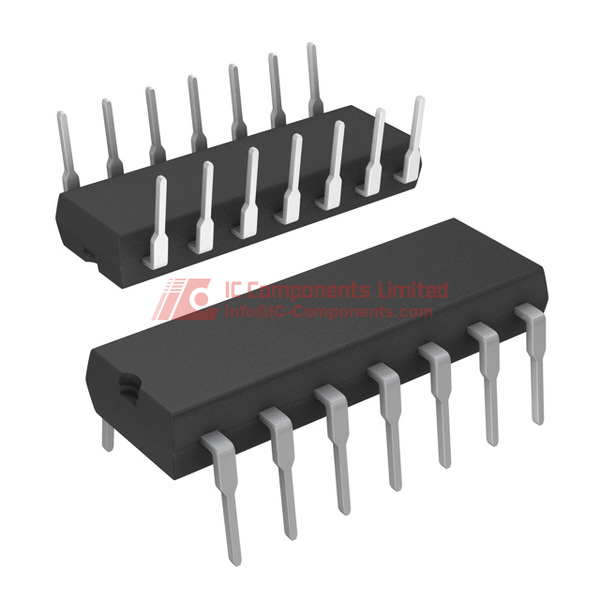

The DG301AAK is available in a 14-CDIP package and operates over a temperature range of -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The analog signal range is 15 V.
The typical on-resistance is 30 Ohm.
The switching time (t ON) is 150 ns.
The package type is 14-CDIP (0.300", 7.62mm).
The operating temperature range is -55°C to 125°C.
