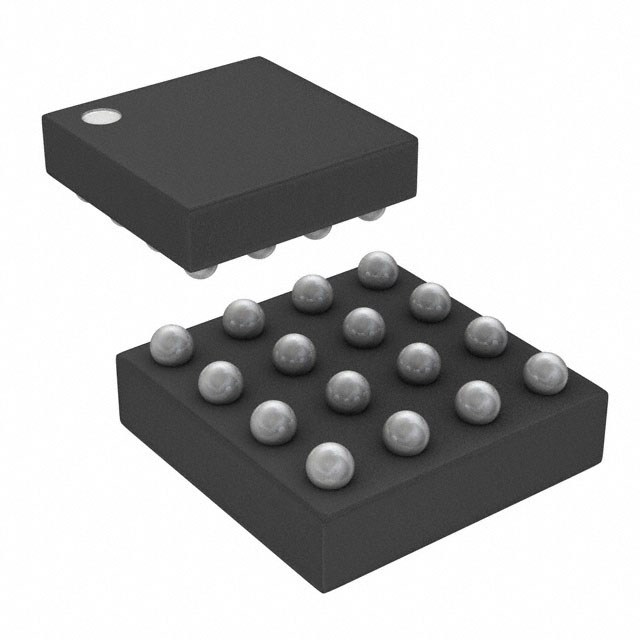

DG2502DB-T2-GE1 The Vishay Dale DG2502DB-T2-GE1 is a quad SPST analog switch featuring 200 Ohm on-resistance and a wide operating voltage range of 1.8V to 5.5V. It is supplied in a compact 16-WCSP package.
Mfr Part #:

DG2502DB-T2-GE1

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale DG2502DB-T2-GE1 is a quad SPST analog switch featuring 200 Ohm on-resistance and a wide operating voltage range of 1.8V to 5.5V. It is supplied in a compact 16-WCSP package.
✓ Total Stock: 3,000 pcs

DG2502DB-T2-GE1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 2017+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DG2502DB-T2-GE1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Power Consumption
Storage Temperature
Supplier Device Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Tape & Reel
Voltage
View Similar Products (0)

DG2502DB-T2-GE1 Description

Short technical summary and product information.

The Vishay Dale DG2502DB-T2-GE1 is a monolithic quad single-pole single-throw (SPST) analog switch designed for single supply operation from 1.8 V to 5.5 V. It offers low leakage current of 1 nA maximum at 85 °C and low parasitic capacitance. The switch has an on-resistance of 200 Ohms and features fast switching times of 100 ns turn-on and 60 ns turn-off.



This device is suitable for applications requiring low charge injection and rail-to-rail signal handling. It operates over a temperature range of -40 °C to +85 °C and boasts an ESD tolerance of over 8000 V HBM. The DG2502DB-T2-GE1 is provided in a compact 16-WCSP package measuring 1.44 mm x 1.44 mm with a 0.35 mm pitch.



Ideal for portable healthcare, instrument, and communication devices, this analog switch ensures break-before-make operation for multiplexer applications. Its TTL/CMOS compatibility and low power consumption make it a versatile choice for battery-powered systems.

DG2502DB-T2-GE1 Quick Information

Product Type: Analog Switch
Canonical Name: DG2502DB-T2-GE1 Quad SPST Analog Switch
Subcategory: SPST - NO

DG2502DB-T2-GE1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DG2502DB-T2-GE1 Features

  • Quad SPST normally open analog switch.
  • Operates from 1.8 V to 5.5 V single supply.
  • Low leakage current of 1 nA maximum at 85 °C.
  • Fast switching times: 100 ns on, 60 ns off.
  • Compact 1.44 mm x 1.44 mm WCSP16 package.

DG2502DB-T2-GE1 Applications

  • Ideal for portable healthcare devices.
  • Suitable for instrument applications.
  • Used in communication systems.
  • Applicable in battery-powered systems.
  • Designed for multiplexer applications.

DG2502DB-T2-GE1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the DG2502DB-T2-GE1?

The DG2502DB-T2-GE1 operates from a single 1.8 V to 5.5 V power supply.

What is the on-resistance of the DG2502DB-T2-GE1 analog switch?

The on-resistance for the DG2502DB-T2-GE1 is 200 Ohms.

What are the switching times for the DG2502DB-T2-GE1?

The switching times for the DG2502DB-T2-GE1 are a maximum of 100 ns for turn-on and 60 ns for turn-off.

What is the leakage current of the DG2502DB-T2-GE1 at 85°C?

The leakage current for the DG2502DB-T2-GE1 is a maximum of 1 nA at 85°C.

What is the package type for the DG2502DB-T2-GE1?

The DG2502DB-T2-GE1 is supplied in a 16-WCSP (1.44x1.44) package.

What is the operating temperature range for this analog switch?

The operating temperature range for the DG2502DB-T2-GE1 is -40°C to 85°C (TA).
