| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,695 pcs
|
4695 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request | |
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | 01+25 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Charge Injection | |
| Crosstalk | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Supplier Device Package | |
| Switch Circuit |

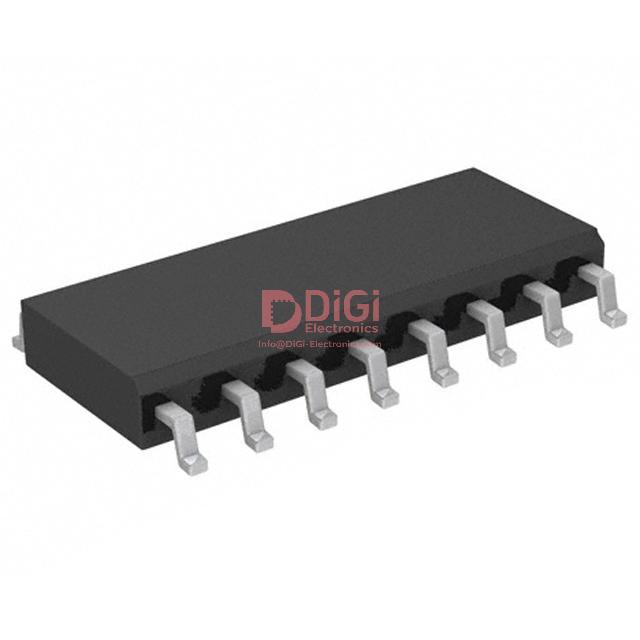

The Vishay Siliconix DG221BDY is an analog switch IC belonging to the Interface category, specifically Analog Switches, Multiplexers, and Demultiplexers. This component features 4 circuits, each configured as SPST-NC (Single Pole Single Throw - Normally Closed). It offers an on-state resistance of 90 Ohms maximum and can handle a multiplexer/demultiplexer circuit configuration of 1:1.
The DG221BDY operates with a single supply voltage ranging from 13V to 18V, or a dual supply voltage from ±7V to ±18V. Its switching times are rated at a maximum of 550ns for turn-on and 340ns for turn-off. The device exhibits low leakage current of 5nA maximum and provides good crosstalk performance of -90dB at 100kHz.
This IC is designed for surface mounting and comes in a 16-SOIC package. It operates within a temperature range of -40°C to 85°C. The DG221BDY is suitable for various interface applications requiring reliable analog signal switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum on-state resistance of the DG221BDY is 90 Ohms.
The DG221BDY can be supplied with a single voltage from 13V to 18V or a dual voltage from ±7V to ±18V.
The DG221BDY operates in a temperature range of -40°C to 85°C.
The DG221BDY is available in a 16-SOIC package.
The DG221BDY has 4 circuits.
