DG202AK The Intersil DG202AK is a 4-circuit analog switch featuring a SPST-NO configuration and an on-resistance of 175 Ohms. It operates within a temperature range of -55°C to 125°C.
Mfr Part #:

DG202AK

Available from 1 distributors
Mfr Name: Intersil
Intersil
The Intersil DG202AK is a 4-circuit analog switch featuring a SPST-NO configuration and an on-resistance of 175 Ohms. It operates within a temperature range of -55°C to 125°C.
✓ Total Stock: 4,512 pcs

DG202AK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,512 pcs
On Request
4512 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DG202AK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Lead Spacing
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Storage Temperature
Supplier Device Package
Supplier Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Tape & Reel
Voltage
View Similar Products (0)

DG202AK Description

Short technical summary and product information.

The Intersil DG202AK is a quad analog switch designed for various interface applications. It features a Single Pole Single Throw Normally Open (SPST-NO) switch configuration, allowing for precise signal routing.



This device offers an on-resistance of 175 Ohms and operates over a wide voltage range of ±4.5V to 18V. The operating temperature spans from -55°C to 125°C (TA), making it suitable for demanding environments. Key electrical characteristics include low charge injection of 20pC and channel capacitance of 5pF.

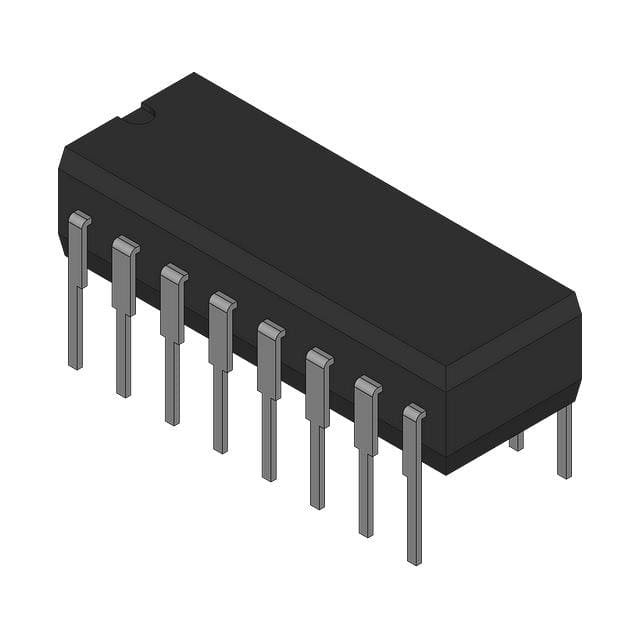

Packaged in a 16-CERDIP, the DG202AK is designed for through-hole mounting. Its specifications include a crosstalk of -90dB at 100kHz and a leakage current of 1nA, ensuring signal integrity.



This component is RoHS3 compliant and has an MSL rating of 1.

DG202AK Quick Information

Product Type: Analog Switch
Canonical Name: DG202AK Analog Switch
Subcategory: Analog Switches, Multiplexers, Demultiplexers

DG202AK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DG202AK Features

  • Four SPST-NO analog switches.
  • 175 Ohm maximum on-resistance.
  • Wide operating voltage range.
  • Low charge injection and capacitance.
  • Operates from -55°C to 125°C.

DG202AK Applications

  • Used in analog signal routing systems
  • Suitable for multiplexing applications
  • Ideal for high-temperature environments
  • Compatible with through-hole PCB assembly

DG202AK FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the DG202AK?

-55°C to 125°C (TA)

What package type is the DG202AK supplied in?

16-CERDIP

What is the on-resistance of the DG202AK?

175 Ohms

How many circuits does the DG202AK have?

4

What is the RoHS status of the DG202AK?

RoHS3 Compliant
