| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
258,286 pcs
|
258286 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14,070 pcs
|
14070 pcs | On Request | 1 | On Request | On Request | 2008 | On Request | On Request | |
|
290 pcs
|
290 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Voltage |
The Vishay Dale DG2018DN-T1-E4 is a dual double-pole/double-throw (DPDT) analog switch operating from 1.8 V to 5.5 V. Built on a low voltage submicron CMOS process, it provides high performance switching of analog signals.
Key electrical characteristics include a low on-resistance of 6 Ω at 2.7 V and a high bandwidth of 180 MHz. The switch time (Ton, Toff) is rated at 48 ns and 33 ns, respectively. It also features low charge injection of -2.46 pC and crosstalk of -72 dB at 1 MHz.
This device is suitable for applications requiring analog and digital signal switching, such as cellular phones, audio and video signal routing, PCMCIA cards, battery-operated systems, and portable instrumentation. It prevents latch-up with an epitaxial layer and guarantees brake-before-make switching.

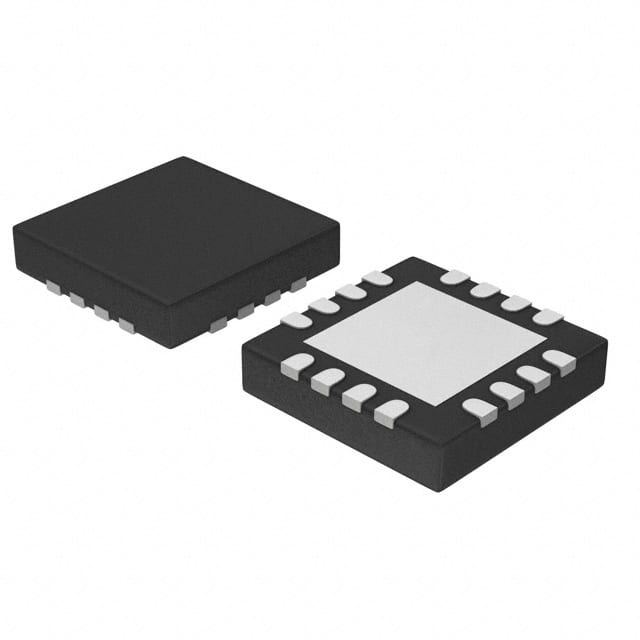

The DG2018DN-T1-E4 is supplied in a 16-QFN (3x3 mm) surface mount package.
The operating voltage range is 1.8 V to 5.5 V.
The on-resistance is 6 Ω at 2.7 V.
The bandwidth is 180 MHz.
It is supplied in a 16-QFN (3x3 mm) surface mount package.
The operating temperature range is -40°C to 85°C (TA).
