| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage |

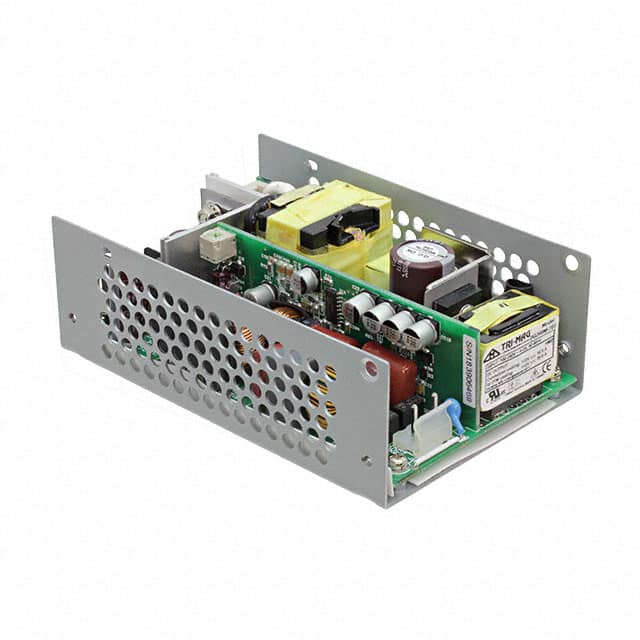

The Tri-Mag, LLC DG200M-7EU is a 200-watt open frame AC/DC power supply designed for demanding applications. It features a 12V output voltage and a compact 3" x 5" x 1.42" form factor, providing 8.9 Watts per cubic inch.
This series includes built-in active Power Factor Correction (PFC) and achieves a typical efficiency of 90%. It operates from a universal input voltage range of 90 VAC to 264 VAC. The unit is rated for 200W via free air convection cooling and can handle up to 300W with 18 CFM forced air.
Designed for safety and reliability, the DG200M-7EU meets UL/CSA/EN 60950-1 (ITE) and ANSI/AMMI/CSA/EN 60601-1 (Medical) standards. It offers 4000 VAC isolation from input to output and is approved for 2xMOPP applications. The operating temperature range is -20°C to 65°C.
Key features include auto-recovery for overload and short circuit protection, and a 10-year manufacturer's warranty. This power supply is suitable for IT, telecommunications, and medical equipment.
The output voltage is 12V.
The power output is 200W via free air convection, and up to 300W with forced air.
The typical efficiency is greater than 90%.
The operating temperature range is -20°C to 65°C.
It complies with UL/CSA/EN 60950-1 (ITE), ANSI/AMMI/CSA/EN 60601-1 (Medical), CE Mark, and CB report.
It supports universal input from 90 VAC to 264 VAC.
The dimensions are 127.0mm x 76.2mm x 36.1mm (5.00" L x 3.00" W x 1.42" H).
