| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

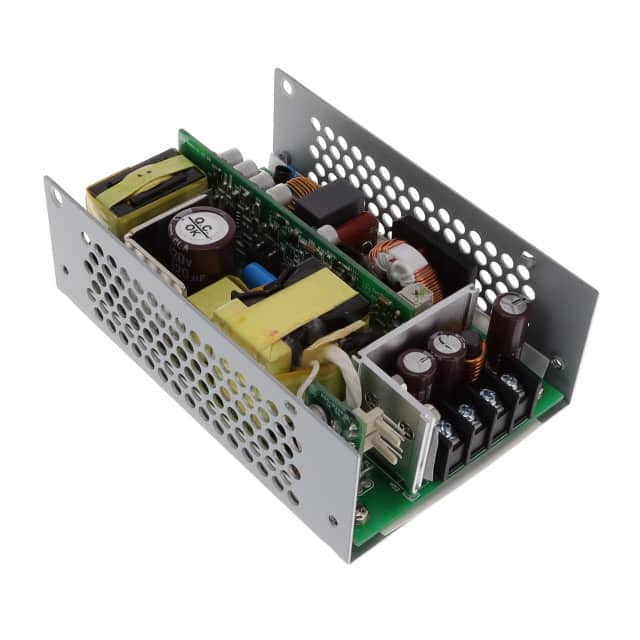

The Tri-Mag DG200-7EU is a 200 Watt open frame AC/DC power supply designed for ITE and Medical applications. It operates with a universal input voltage range of 90-264 VAC and provides a stable 12V output.
Key electrical specifications include a typical efficiency of 90%, a power factor greater than 0.9, and line/load regulation of ±0.5% and ±1.0% respectively. The unit offers robust protection features such as overvoltage, overload, and short circuit protection with auto recovery.
Designed for versatility, the DG200-7EU has a compact open frame form factor with dimensions of 127.0mm x 76.2mm x 36.1mm. It operates within a temperature range of -20°C to 65°C and meets stringent safety and EMC standards including UL/CSA/EN 60950-1 and EN 60601-1.
This power supply is suitable for various applications including Information Technology Equipment (ITE), medical devices, and telecommunications, offering reliable power conversion in a compact package.
The DG200-7EU provides a 12V output voltage.
The maximum output current is 16.5 A.
The DG200-7EU is rated at 200W with 300W available using forced air cooling.
The typical efficiency of the DG200-7EU is 90%.
The DG200-7EU operates from -20°C to 65°C, with derating applied above 50°C.
The DG200-7EU is approved by CB, CE, UL/CSA/EN 60950-1, and ANSI/AMMI/CSA/EN 60601-1.
