| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

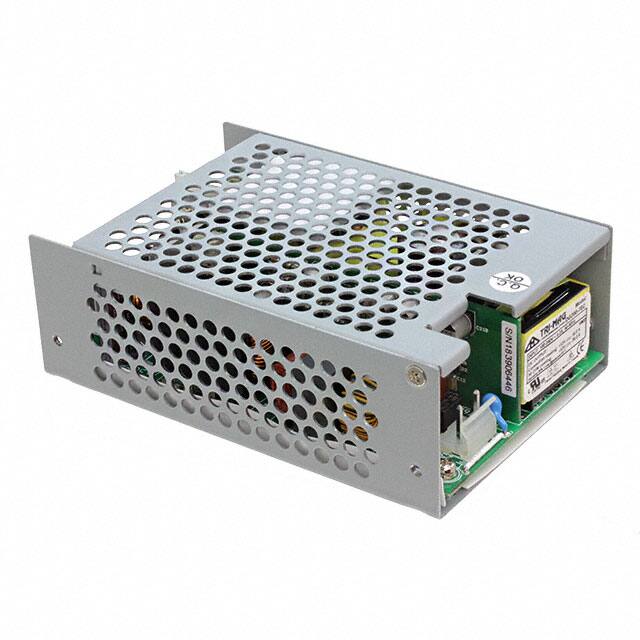

The Tri-Mag DG200-7EC is a 200-watt enclosed AC/DC power supply designed for ITE applications. It operates with a universal input voltage range of 90-264 VAC and provides a single 12V output.
Key electrical specifications include a maximum output current of 16.5A, 90% typical efficiency, and active power factor correction (PFC). The unit offers line regulation of ±0.5% and load regulation of ±1.0%. It also features a hold-up time greater than 20ms and a start-up rise time of 2ms typical.
Designed for reliability, the DG200-7EC has an operating temperature range of -20°C to 65°C with derating. It meets various safety standards including UL/CSA/EN 60950-1 for ITE and ANSI/AMMI/CSA/EN 60601-1 for medical applications. The power supply is built with 4000 VAC input-to-output isolation.
This power supply is chassis mounted and comes in an enclosed form factor. It has dimensions of 127.0mm x 76.2mm x 36.1mm (5.00" L x 3.00" W x 1.42" H). The product includes features like PFC and standby output, making it suitable for various commercial and industrial equipment.
The DG200-7EC provides a 12V DC output voltage.
The maximum output current for the DG200-7EC is 16.5A.
The DG200-7EC accepts a universal input voltage range of 90-264 VAC.
The DG200-7EC has a typical efficiency of 90%.
The DG200-7EC can operate from -20°C to 65°C, with derating applied above 50°C.
The DG200-7EC complies with UL/CSA/EN 60950-1 for ITE and ANSI/AMMI/CSA/EN 60601-1 for Medical applications.
The dimensions of the DG200-7EC are 127.0mm x 76.2mm x 36.1mm (5.00" L x 3.00" W x 1.42" H).
